Home > Products > Marine Gearbox > CCS approved!135A advance marine reduction gearbox

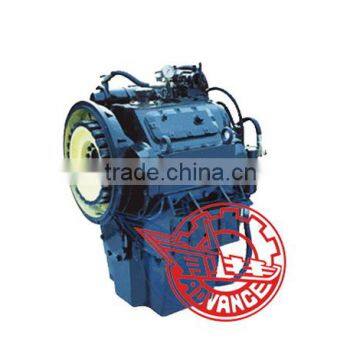

CCS approved!135A advance marine reduction gearbox
US$ 3,000 - 4,000
/ Set
1 Set(Min. Order)
- Shanghai or other ports in China
- T/T
You May Like
-
Advance Tranmission Marine gearbox HC138
-
Advance marine gearbox HCA300 for high speed boat
-
China Hangzhou Advance HCQ300 Marine Gearbox Light High Speed
-
Hangzhou Advance Light Hi-Speed Marine Gearbox HC200
-
China Hangzhou Advance HCQ138 Marine Gearbox Light High Speed
-
Hangzhou Advance Light Hi-Speed Marine Gearbox Mv100A
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Advance marine gearbox | |
| Model Number | China Advance Marine Gearbox (135A) With CCS | Gearing Arrangement | Planetary | |
| Output Torque | transmission capacity(kw/rpm) 0.147/0.134/0.110/0.088 | Rated Power | input power range(kw) 147-367 | |
| Input Speed | 1000-2500 | Output Speed | reduction ratio(i) 4.05/4.53/5.12/5.50/5.95/6.39/6.82 |
Product Description
CCS approved!135A advance marine reduction gearbox
1.135A Marine Gearbox.
2. Specification: Long X Length X High(mm): 578 X 744 X 830.
3. Rated Rev(r/min): 1000-2000.
4. Bell Housing: SAE1
5. Flange: SAE14
6. Center Distance(mm): 225
7. Thrust(kN): 29.4
8. Net Weight(kg): 470
9. Control Mode: Push-Pull Cable, Electronic Control.
10. Matched Engine: 6135Ca h615 NT-855-M240; CAT 3406
| Ratio | 1.03 | 1.28 | 1.50 | 2.03 | 2.48 | 2.95 |
| Ratio(hp/rpm) | 0.15 | 0.133 | ||||
Description
Marine Gearbox 135 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, light in weight and easy in dismantle & reassemble and maintain.
Main Data
product name | Marine Gearbox 135 | ||
Input speed | 750-2000r/min | ||
Reduction ratio | 2.03,2.59,3.04,3.62,4.11 | Trans. capacity | 0.10kw/r/min |
4.65 | 0.093kw/r/min | ||
5.06 | 0.088kw/r/min | ||
5.47 | 0.077kw/r/min | ||
5.81 | 0.070kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 29.4KN | ||
Center distance | 225mm | ||
L×W×H | 578×744×830mm | ||
Net weight | 470kg | ||
Flywheel | 6135Ca,SAE14 | ||
Bell housing | 6135Ca,SAE1 | ||
Applications
Marine Gearbox 135 is suitable for small fishing, transport, tug, traffic and passenger boats.
