8inch 500nits 1024*600 Lvds Interface Outdoor Display Capacitive Touch Lcd With CTP
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
8inch 500nits 1024*600 Outdoor Lcd Display Panel With Lvds Interface
-
8inch 600nits 1024*600 Outdoor Lcd Capacitive Touch Panel With Lvds Interface
-
8inch 600nits 1024*600 Outdoor Lcd Screen With Lvds Interface
-
8inch 700nits 1024*768 Lvds Interface Outdoor Lcd Panel IPS Capacitive Touch Screen Module
-
8inch 700nits 1024*768 Sunlight Readable IPS Display Module With Lvds Interface
-
7inch 500nits 500nits 1024*600 Lvds Interface Wide Viewing Angle Outdoor Lcd Display
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW080NA-08A-CTP | Type | Other, TFT, TFT |
Product Description
8.0inch outdoor display capacitive touch lcd
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 8.0inch lcd module |
| 2 | Model number | SW080NA-08A-CTP |
| 3 | Size | 8.0INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 6:00 |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Normally white, Transmissive |
| 8 | Resolution | 1024*600 |
| 9 | Piexel pitch | 0.1725(W)*0.1656(H) |
| 10 | Dimension | 192.8*116.9*7.9mm |
| 11 | Active area | 176.64*99.36 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 30ms |
| 18 | Contrast ratio | 700:1 |
| 19 | Brightness | 500cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9.9V |
| 25 | Current for LED | 360mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Plain |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | capacitive touch panel |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

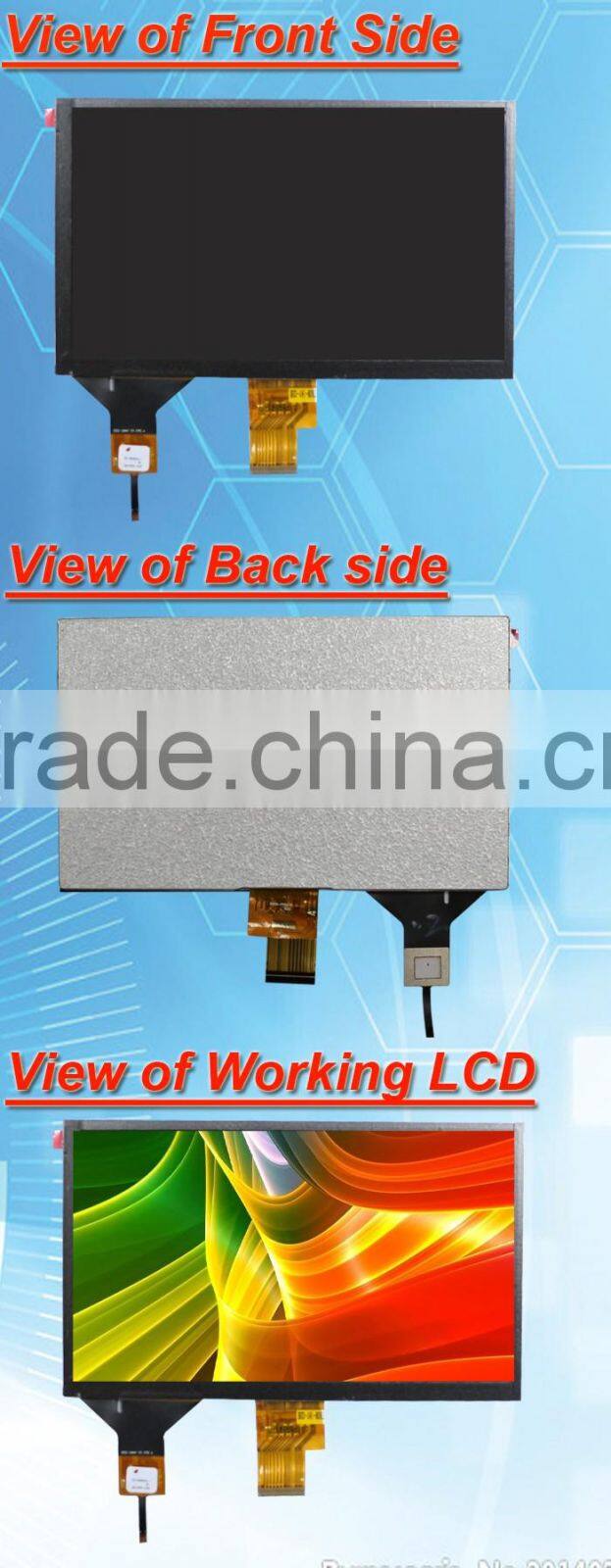

LCD PICS

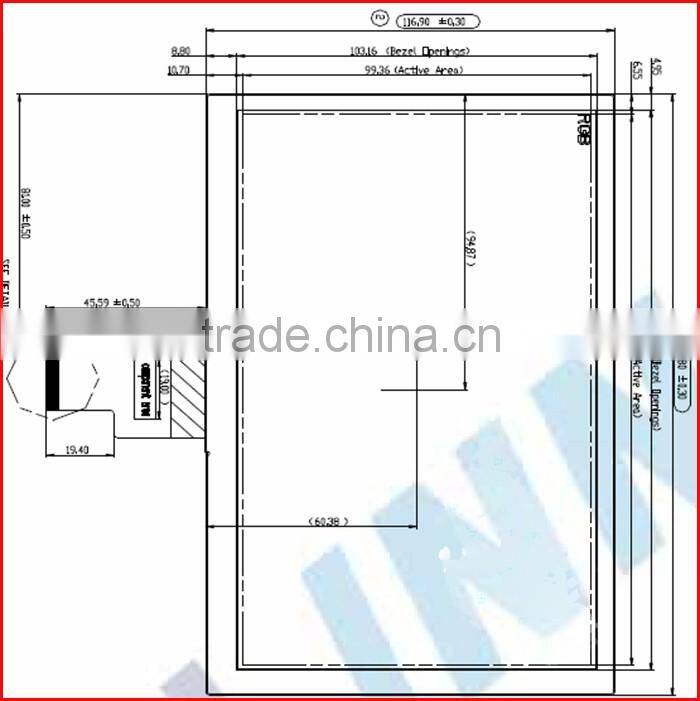

LCD structure

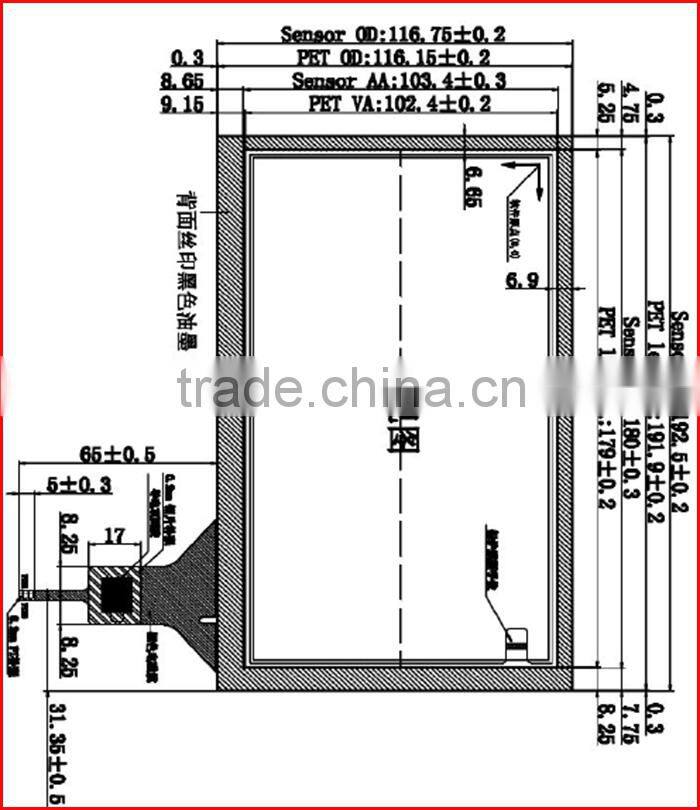

CTP structure
