Home > Products > High brightness lcd > 4.8inch 540*960 MIPI Interface 560nits High Brightness IPS Panel Screen for Outdoor Use
4.8inch 540*960 MIPI Interface 560nits High Brightness IPS Panel Screen for Outdoor Use
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
4.3inch 480*272 RGB Interface 500nits Landscape Outdoor Screen Module
-
3.5inch 480*640 HX8363-A 800nits High Brightness IPS Panel Lcd With RGB/MCU/SPI Interface
-
3.5inch 320*240 SSD2119 450nits MCU/RGB/SPI Interface High Brightness Screen Module
-
3.5inch 480*640 HX8363-A 400nits High Brightness IPS Lcd Module Display With RGB Interface
-
8inch 700nits 1024*768 High Brightness IPS Display Lcd With Lvds Interface
-
3.5inch 480*640 HX8363-A 800nits IPS High Brightness Lcd Module With RGB/MCU/SPI Interface
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW048N-SV0N | Type | Other, TFT, TFT |
Product Description
4.8inch high brightness IPS panel screen
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 4.8inch MIPI IPS lcd display module |
| 2 | Model number | SW048N-SV0N |
| 3 | Size | 4.8INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 16:9 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 540*960 |
| 9 | Piexel pitch | / |
| 10 | Dimension | 63.74 ×115.96×1.65 |
| 11 | Active area | 59.94 ×106.56 |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | MIPI |
| 17 | Response time | / |
| 18 | Contrast ratio | / |
| 19 | Brightness | 560cd/m2 |
| 20 | VDD | 3.3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 19.2V |
| 25 | Current for LED | 36mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | NT35517 |
| 29 | Interface connect type | soldering type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 24PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

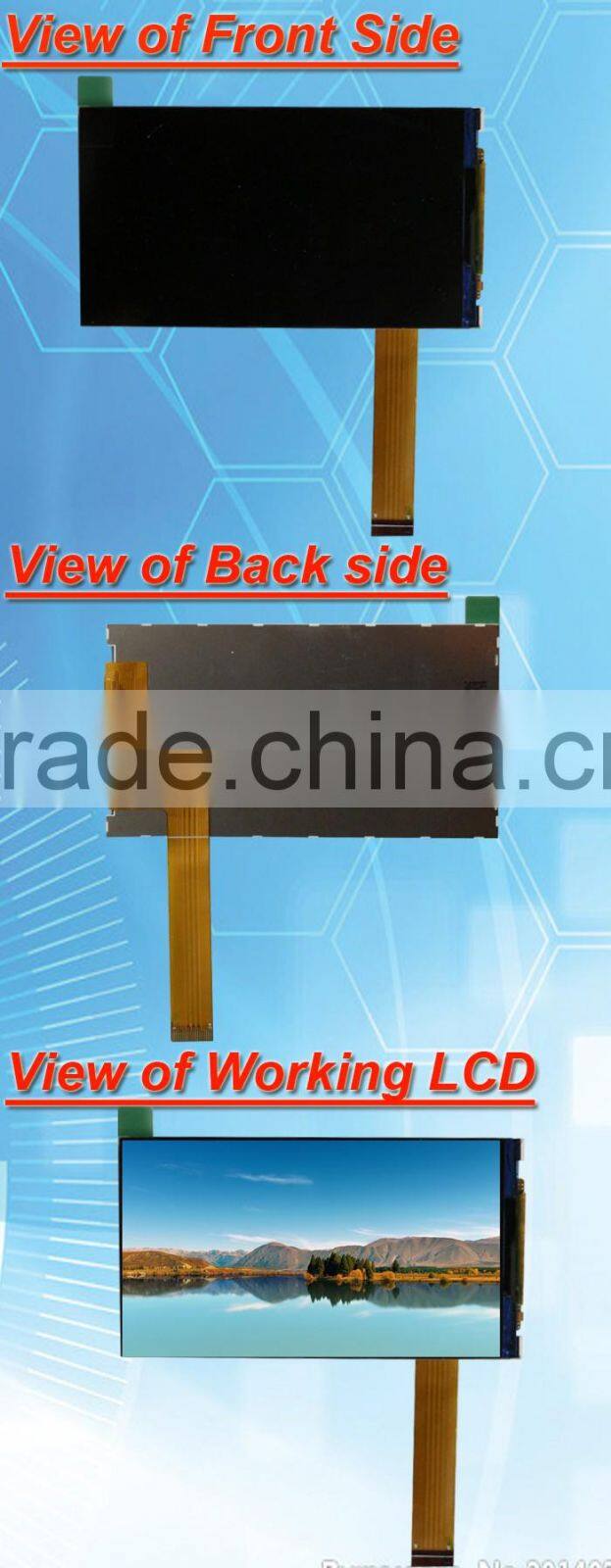

LCD PICS
