3.5inch 480*640 HX8363-A 800nits High Brightness IPS Panel Lcd With RGB/MCU/SPI Interface
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
3.5inch 320*240 SSD2119 450nits MCU/RGB/SPI Interface High Brightness Screen Module
-
3.5inch 480*640 HX8363-A 400nits High Brightness IPS Lcd Module Display With RGB Interface
-
8inch 700nits 1024*768 High Brightness IPS Display Lcd With Lvds Interface
-
3.5inch 480*640 HX8363-A 800nits IPS High Brightness Lcd Module With RGB/MCU/SPI Interface
-
5.0inch Half HD 720P Lcd Screen With MIPI Interface
-
10.1inch Lvds 1000nits 1280*800 High Brightness IPS Module Touch Panel With USB Interface CTP
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW035N-SV3 | Type | Other, TFT, TFT |
Product Description
3.5inch high brightness IPS panel lcd
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 3.5inch lcd module |
| 2 | Model number | SW035N-SV3 |
| 3 | Size | 3.5INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 9:00 |
| 6 | Display scale | 4:3 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 480*640 |
| 9 | Piexel pitch | 0.111*0.111 |
| 10 | Dimension | 64*85*2.9mm |
| 11 | Active area | 53.28*71.04 |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | RGB/SPI/MCU |
| 17 | Response time | 25ms |
| 18 | Contrast ratio | 500:1 |
| 19 | Brightness | 800cd/m2 |
| 20 | VDD | 3.0V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 12.8V |
| 25 | Current for LED | 40mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | HX8363-A |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 61PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP is available |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

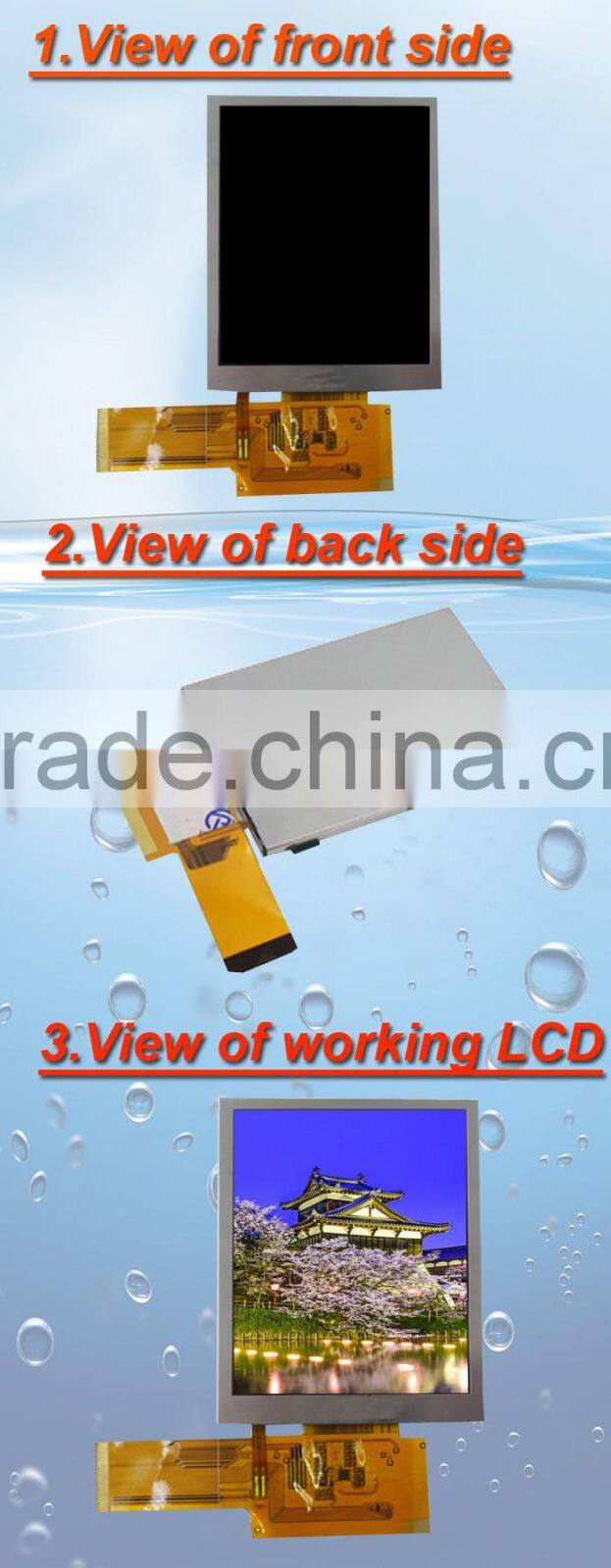

LCD PICS
LCD structure
