2KM Wireless RF module YS-C20L 0.5W 433Mhz RF data module
USD $40 - $50
/ Piece
2 Pieces(Min.Order)
- 3000 Piece / Pieces per Month
- shenzhen
- Credit Card PayPal
You May Like
-
VHF Data Audio modem VHF wireless module (150Mhz/230Mhz/350MHz data transceiver, RF module)
-
Wireless data RF module CC1100 USB wireless tranceiver
-
voice logger
-
16CH PCI Telephone recording card Cost Effective DSP Technology Call Recorder 16 Line Telephone Recorder
-
DAR-3001 1-line Voice Mail System and Standalone Telephone Recorder manufacturer
-
Voice logger tlepehone recorder Dar-2001
Product Details
| Place of Origin | Guangdong, China | Brand Name | yishi | |
| Model Number | YS-C20L 433M |
Product Description

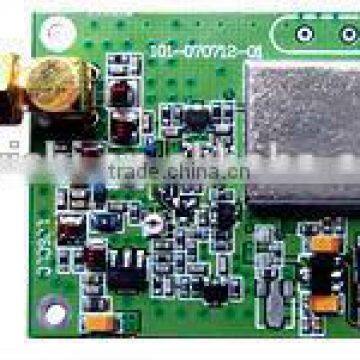

YS-C20L 433Mhz 0.5W RF module
Product Description
1.Main Features:
* Carrier frequency: 433 MHz, 450MHz, 868MHz, 915MHz or ISM others;
* Provide rich interface:RS-232/ TTL/ RS-485;
* 8 channels, expandable for 16/32 channels according to requirements of customers;
* Baud rate: 1200/2400/4800/9600/19200bps;
* Interface format: 8N1/8E1 user-defined, or customization for other format interface;
* Integration of receiving and transmitting and half duplex;
* Low power consumption and sleep function;
* Temperature: -35~+75 C;
* Impedance: 50 Ohm(SMA antenna port, multiple antenna options available);
* Complying with EN 300220 and ARIB STD-T67.
2.Application areas:
* Automatic meter reading (AMR) and home automation
* Supervisory control and data acquisition (SCADA)
* Remote control,industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Wireless remote control alarm of power supply and fan equipment in the computer room;
* Sports training & competition;
* Wireless POS, PAD wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Point to multi-point wireless network,data collection system.
* Supervisory control and data acquisition (SCADA)
* Remote control,industry data collection;
* Monitoring of remote systems
* Production reporting of active systems
* Wireless remote control alarm of power supply and fan equipment in the computer room;
* Sports training & competition;
* Wireless POS, PAD wireless smart terminal;
* Electronic bus station and intelligent traffic;
* Point to multi-point wireless network,data collection system.
3.Specifications:
* Power supply: DC 5V;
* RF power: 500mW;
* Receiving current: <25mA;
* Transmitting current: <400mA;
* Sleep current: <20uA;
*Transmission distance:
2Km (BER=10-3@9600bps);
3Km (BER=10-3@1200bps);
2Km (BER=10-3@9600bps);
3Km (BER=10-3@1200bps);
* Size: 53mm*38mm*10mm (without antenna port ).
4.Interface definition:
Pin No. | Pin name | Description | Level | Remands |
1 | GND | Grounding of power supply | ||
2 | Vcc | Power supply DC | 5V | |
3 | RXD/TTL | Serial data receiving end | TTL | |
4 | TXD/TTL | Serial data transmitting end | TTL | |
5 | DGND | Digital grounding | ||
6 | A(TXD) | A of RS-485 or TXD of RS-232 | ||
7 | B(RXD) | B of RS-485 RXD of RS-232 | ||
8 | SLEEP | Sleep control (input) | TTL | Low level sleep |
9 | RESET | Reset (input) | TTL | Negative impulse reset |
5.Setting of channel, interface, and data format
The user can change or view the module's interface baud rate, channel and address code.
Parameter setting or reading as per the testing software "YSPRG.EXE" in the CD (in products box) .
Channel No. | Frequency | Channel No. | Frequency | Channel No. | Frequency | Channel No. | Frequency |
1 | 429.0325MHZ | 2 | 430.0325MHZ | 3 | 431.0325MHZ | 4 | 432.0325MHZ |
5 | 433.0325MHZ | 6 | 434.0325MHZ | 7 | 435.0325MHZ | 8 | 436.0325MHZ |
NOTE: Generally the module in receiving state, if the IDLE pin continuously connect low level (>200millisecond), the module will be in sleep state, at the same time the module can not receive or transmit any data, only when the IDLE pin hang or in the state of high level (VH<3.5V), the module can be in receiving state again.
