Product Details
| Place of Origin | Hebei, China | Brand Name | Ronghua | |
| Model Number | YH/YHF rubber welding cables | Insulation Material | Rubber | |
| Type | Low Voltage | Application | Other, Welding machine | |
| Conductor Material | Copper | Jacket | Rubber |
Product Description
Industrial Application Low Voltage Copper Welding Wire
Hebei Ronghua Wire And Cable Co,.LTD
Our Advantage:
* More than 30 years production experience of rubber sheathed welding cables.
* OEM & ODM service is avaliable.
* Factory price with good quality.
H01N2-E/H01N2-D welding cable For the transmission of high currents from the electric welding device to the welding tool.
Application
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.
Technical Data
1-Conductor : Class 5 or class 6 , bare copper wire or tinned copper wire
H01N2-E ---------high flexible
H01N2-D---------flexible
2- Separator: Polyester foil or tape
3-Outer sheath: polychloroprene (PCP) or HOFR (Heat and Oil Resistant and Flame Retardant)
Advantage
Retains the high flexibility also under the influence of light,ozone,oxygen,inert gas,oil
Resistant against the effects of cold, heat, and fire
Use outdoors or in dry and damp rooms
Service Conditions
Suitable for the welding machine whose voltage to the ground is not more than 200v and pulsating current value is 400V.
Model | Name | Main applications | Working temperature of core ≤0C |
YH | Natural Rubber Sheath for Welding Cable | Always used indoor | 65 |
YHF | Neoprene Rubber Sheath Welding Cable | Always used outdoor | 65 |
Synthetic elastomer Sheath Welding Cable |
Rubber Welding Cables Specifications
Conductor Nominal Section (mm2) (mm2) | Conductive Core
| Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 20oC Conductor Resistance≤(Ω/km) | Reference Weight(kg/km) | ||
Number/Diameter of Core(mm) | Min | Max | YH | YHF | |||
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 | 153.51 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 | 230.44 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 | 331.15 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 | 439.87 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 | 610.55 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 | 817.52 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 | 1102.97 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 | 1392.55 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.129 | 1678.5 | 1698.72 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 | 2020.74 |

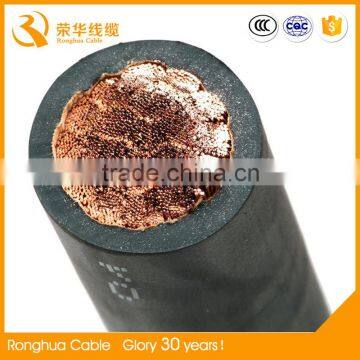

Pictureof rubber welding cables
Packaging:
Material:
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping:
Port: Tianjin, or other ports as per your requireents.
Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.
Hebei Ronghua Wire And Cable Co.,LTD, a professional manufacture of various of Electric Power Cables, Rubber Sheath Flexible Cable, Housing Wiring Electric Wires for more than 30 years experience. Surely we could provide you the factory price, stable quality, professional service. For any information, please kindly contact us.
Certifications:
Related Products:
Q1:When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
Q2.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3.How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days.
Q4.What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your inquiry of copper welding wire. We will reply you within 12 hours!
