35mm2 50mm2 70mm2 95mm2 Super Flexible Copper Core Welding Cable

1  Product name:  35mm2 50mm2 70mm2 95mm2 super flexible copper core welding cable

2  Color:  black,white,red,blue,green,gray,etc

3  Test voltage:  NA

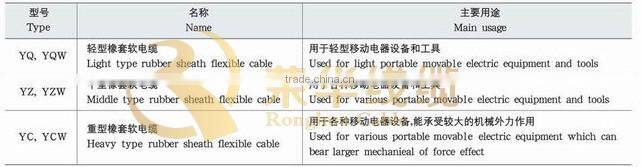

4  Application:

     Light type rubber sheath flexible cable:  used for light fortable movable electric equipment and tools;

     Middle type rubber sheath flexible cable:  used for various fortable movable electric equipment and tools;

     Heavy type rubber sheath flexible cable:  used for various fortable movable electric equipment which can bear larger mechanienl of force effect.

5  Use features:   Installation temperature not lower than 0℃,and the bending radius should not be less than 10 times of                           outer dismeter of cable;

                         The long-time working temperature of cable should not be higher than 70℃;

                         When core is in short-circuit(max 5s)the temperature should not exceed 160℃.

6  Nominal cross section area of conductor:  4 core*0.75mm²   1.0mm² 1.5mm² 2.5mm² 4mm² 6mm² 10mm²

7  Conductor:  copper cu

8  Insulation material:  rubber insulation and sheath

9  Core: 2 core or 3 core or other type

10

11  Rated voltage:  300/300v low voltage

12  Insulation thickness:  0.6mm 0.7mm 0.8mm 1.0mm

13

14  Armour:  can be armored with steel tape or steel wire if needed

15  Steel tape thickness:  0.05mm up to 0.15mm or require

16  Sheath thickness:  1.2mm 1.5mm 1.7mm or according the requirement

17  Approx.overrall/average diameter of cable: 8.6-23.5mm within armour

18  Approx weight of cable:   with armour:copper conductor 153-924kg/km

19  Conductor resistance at 20℃:  copper conductor ≤0.0470-0.524Ω/km,aluminum conductor ≤0.0778-0.868Ω/km

20  Other product describtion:  as follows

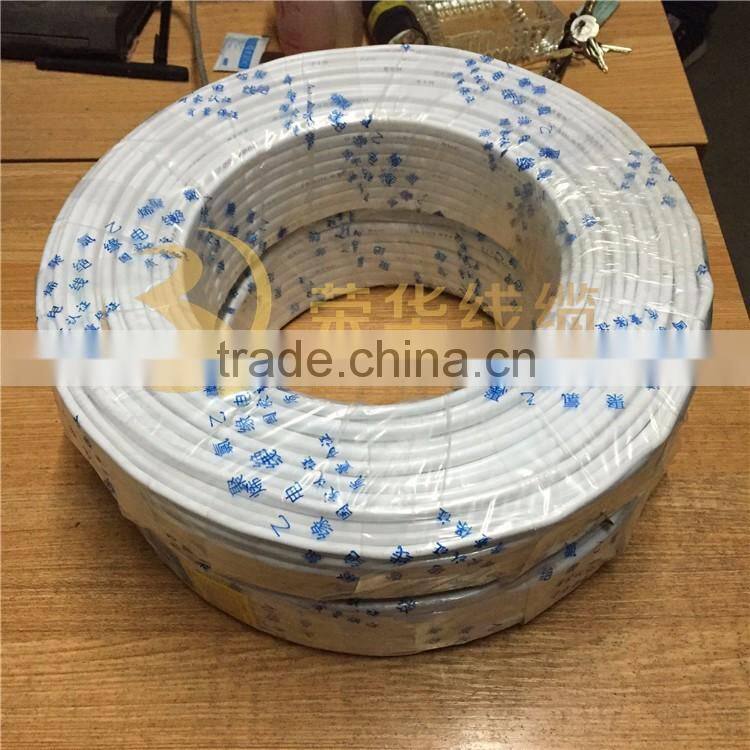

 Packaging

Normally we would be conventional packaging.

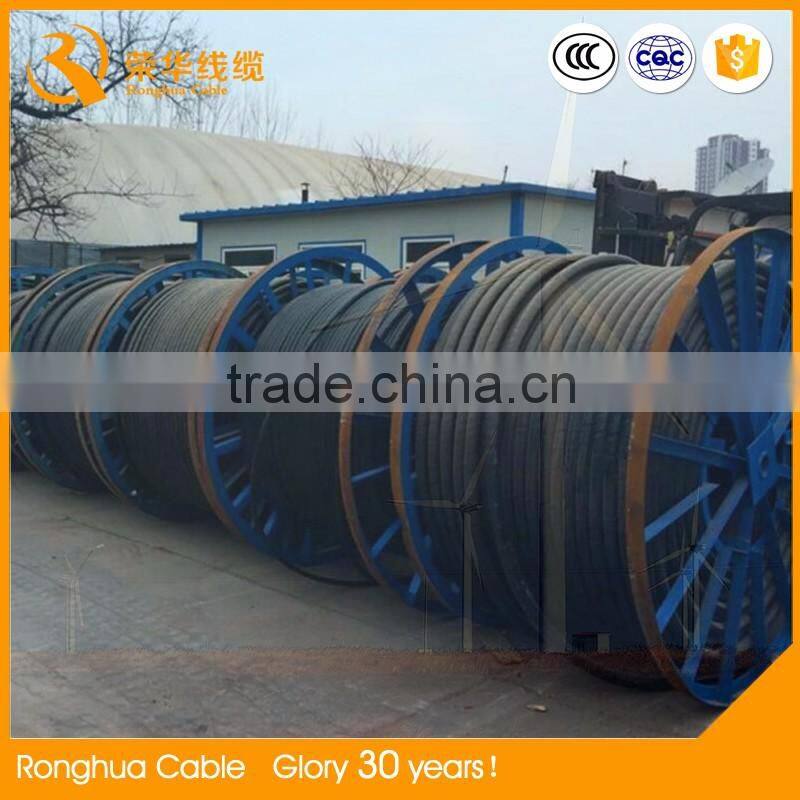

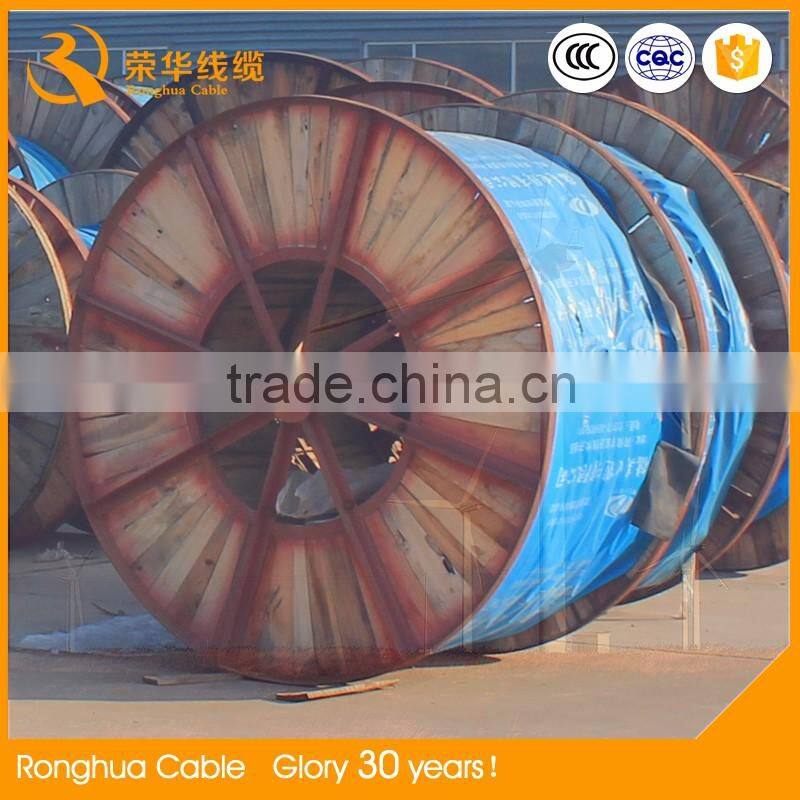

The can be packaged wrapping around big wheels(we call them wooden drums),like this!

1   More than 30 years experience;

2  OEM & ODM service is acceptable;

3  Good quality with factory price;

4  Can print words on the wire.

5  Other reasonable requirements.

    Hebei  Ronghua Wire And Cable Co.,Ltd is located in western of Cangzhou of Hebei province with convenient transportation and mailing.

    Our company was established in 1984,covering an area of 60,000 square meters and owing enormous potentiality .The quality of our commodities can be guaranteed reliably with advanced equipments. What’s more, it’s more than once to be conferred an honorary title.

    The main commodities are as follows: rubber jacketed flexible cable, welding cable, waterproof cable, bare conductor, mining cable, shipboard cable, high voltage cable, fire resistant cable, oil-resistant cable, flame retardant, etc. It’s also can be designed and produced according to requirements of costumers.

    Our products has gained the China National Compulsory Product Certification.

    High quality, reasonable price and good service would meet your satisfactions. Quanxi Zhao, our Managing director, is willing to forge ahead hand in hand, and create the brilliancy together.

 If you have any question about wire and cable,please kindly contact us freely!We will reply you as soon as possible!
