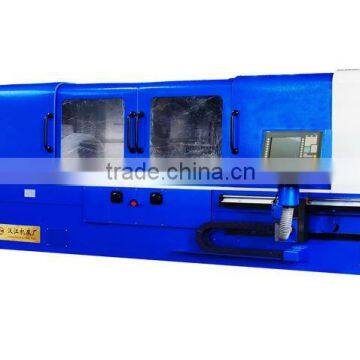

HJMTC SK7732 series CNC Worm grinding machine
- 150 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Shaanxi, China | |
| Brand Name | HJMT | Model Number | SK7732 |
Product Description
Specifications
Equipped with CNC sytem,it can be used to grind worms with ZK, ZI, ZA, ZN profiles, ACME leadscrews.
Main specifications:
1. Max. diameter of workpiece: 320mm
2. Max. center distance: 1500mm
3. Center height: 180mm
4. Max. diameter ground: 200mm
5. Min. diameter ground: 10mm
6. Max. traverse of table: 1000mm
7. Pitch ground
Module: 1.5~20
Metric: 3~24mm
British: 2/1”~6/1”
8. Max. lead ground: 300mm
9. Max. helix angle ground: ±40°
10. Number of starts: 1~99 (free)
11.Work spindle speed: for indexing 4
12.Table traverse speed: 0-3m/min
13. Cross feed speed: 0-3m/min
14.Dresser feed speed: 0-1m/min
15. Resolution:
X,Y, Z axis: 0.001
C axis: 0.001°
16.Cross traverse of wheel stock: 150mm
17.Rapid approach & withdrawal of wheel stock: 50mm
18.Wheel spindle speed: 1340,1480
19.Wheel size
O.Dx I.D: 400~500mm
Width: 25, 32,40mm
20. Machine dimensions: 4390mmx2635mmx2385mm
