Home > Products > New Products > S7620A Internal thread grinding machine

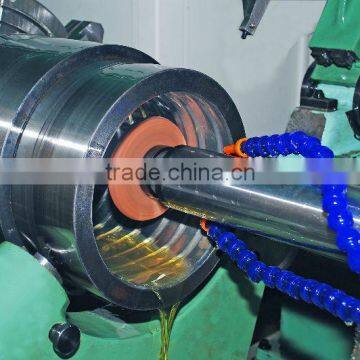

S7620A Internal thread grinding machine
- 300 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
HJ080A Silicon steel sheet longitudinal splitting line
-
splitting line of silicon steel sheet longitudinal (5 Tons)
-
HJMTC SK7140 CNC Thread Plug Grinding Machine
-
HJMT Automatic suspension electric insulator wet moudling machine
-
Hi-Quality Hanji gears, worms, splineshaft For Machines
-
HJMTC CNC DRY BAR-TYPED INSULATOR BLANK PROCESSING MACHINE
Product Details
| Condition | New | Type | Internal Grinding Machine | |
| CNC or Not | Normal | Place of Origin | Shaanxi, China | |
| Brand Name | HJMTC | Model Number | S7620A |
Product Description
Specifications
It is intended to grind cylindrical or conical threads ,Max I.D. × max. thread length | Φ200×125mm |
Pitch to be ground |
|
Metric system | 1—24mm |
British system | 3/1″--20/″ |
Max. length of thread ground |
|
Conical(1:16,1:4) | 80mm |
Cylindrical | 125mm |
Grinding thread profile |
|
For circular : radius | >R2.5 |
Number of starts | 1~4 |
Max. diameter of work piece admitted | Φ240mm |
Max. length of work piece admitted | 200mm |
Center height | 200mm |
Work piece speed: working (step less) | 0.3—15r/min,0.6—30r/min |
rapid | 60r/min,100r/min |
Max. longitudinal travel of table | 440mm |
Wheel head |
|
Lateral movement | 0~60mm |
Feed amount: per graduation of hand wheel | 0.01mm |
Per turn of hand wheel | 2mm |
Max helix angle of thread ground | R.H.8°,L.H.12° |
Wheel size: max dia. | 100mm |
Min dia. | 20mm |
Wheel speed | 7000,9000,14000,18000r/min |
Total capacity of motors | 4.11kw |
