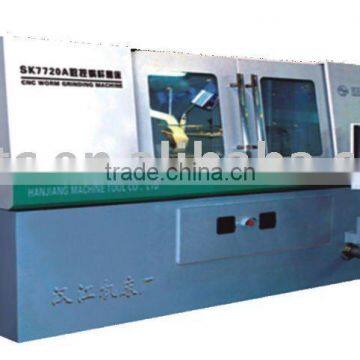

HJMTC SK7720A CNC Worm Grinding Machine
- T/T
You May Like
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Shaanxi, China | |
| Brand Name | HMTC | Model Number | SK7720A |
Product Description
Specifications
It is a high precision worm grinding machine and can be used for grinding various cylindrical worms as the worms with profies.It is a high precision worm grinding machine and can be used for grinding various cylindrical worms such as the worms with profile ZA, ZK, ZI. It can be used for grinding the leadscrews with various profiles, suitable to machine tool works and other machinery industries.
specifications:
Max. diameter of workpiece: 200mm
Max. center distance: 750mm
Centre height: 120mm
Max. diameter ground: 200mm
Max. length ground: 500mm
Pitch ground: Module: 1.2-12mm
Metric: 1-24mm
British: 3/1"-24/1"
Max. lead ground:150
Max. helix angle ground: ±30°
Number of starts: 1, 2, 3, 4, 6, 8, 10, 12
Work spindle speed: For grinding r/min 0.2-4, 0.8-16
For rapid return r/min 1-5, 4-20
For indexing r/min 4
Cross traverse of wheel stock: 150mm
Rapid approach & withdrawal of wheel stock: 50mm
Wheel spindle speed: r/min 1340, 1480
Wheel size (O.D.xwidth) : 300-400x10/20
working accuracy:
for grinding worms with 1-2 starts: 5 grade
for grinding worms with 3 and above starts: 6 grade
for grinding leadscrew with pitch≤6mm: 6 grade
