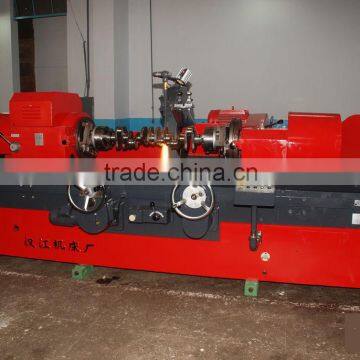

HJMTC MQ8260A Crankshaft Grinding Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Crankshaft grinding machine
CNC or Not	Normal	Place of Origin	Shaanxi, China
Brand Name	Hanjiang	Model Number	MQ8260A
Certification	ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Max. Work swing diameter × Max work length	Φ580×1600mm
Capacity
Max. Swing over table	Φ580mm
Work diameter ground with steady rest	Φ30~Φ100mm
Throw of crankshaft	110mm
Max. work length ground
In 3-jaw chuck	1400mm
Between centers	1600mm
Max. work weight	120kg
Work head
Center height	300mm
Work speed	25,45,95r/min
Wheel head
Max. Cross movement	185mm
Wheel head rapid approach and withdrawal	100mm
Wheel feed per turnoff cross fed hand wheel	1mm
Per grad. of cross feed hand wheel	0.005mm
Grinding wheel
Wheel spindle speed (2steps)	740.890r/min
Wheel peripheral speed	25.6-35m/sec
Wheel size (O. D .× width ×Bore)	Φ900×32×Φ305mm
Table
Table traverse per turn of hand wheel coarse	5.88mm
Fine	1.68mm
Table Swivel (taper 18/100)	5°
Table Swivel per grad of scale (taper 1:50)	10′
Overall capacity of motors	9.82kw
Overall dimensions (L×W×H)	4166×2037×1584
Weight	Approx. 6000kg
