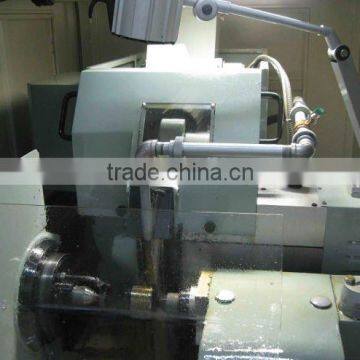

CNC plug thread grinding machine
- 20 Set / Sets per Month
- T/T
You May Like
-
CNC Precision spline shaft grinding machine MK8612
-
HJMTC S(K)75XXA Universal thread grinding machines
-
HJMTC SK7720A CNC Worm Grinding Machines
-
MK8612A High Precision CNC spline shaft grinding
-
SK76 series High precision Thread grinding machine
-
HJMTC MGK1432 Serial Hi-precision CNC cylindrical grinder
Product Details
| Condition | New | Type | Other, thread grinding machine | |
| CNC or Not | CNC | Place of Origin | Shaanxi, China | |
| Brand Name | HJMT | Model Number | SK7140 |
Product Description
Specifications
it is used to grind thread plugs with cylindrical, conical profiles.The machine is equipped with SINMENS 840D control system, able to realize five axes with three fo which in sync. Movements of key parts of the machine, such as the rotary movement of work piece, the reciprocating movement of worktable, the cross movement of wheel stock, and the vertical and horizontal movement of wheel dresser, are all driven by SIEMENTS AC servo motors.
With a linear encoder rested on the work table, and a full closed-loop control, the accumulative and adjacent pitch error can be corrected.
The cross feed movement of grinding carriage is in a full closed-loop, making for a fine working accuracy.
Specifications:
max. installing diameter: 400mm
distance between centers: 500mm
center height: 240mm
thread diameter to be ground: 50-400mm
max. thread length to be ground: 380
pitch to be ground:
metric thread: 0.5-8mm
inch thread: 3-40teeth/inch
max. helix angle: ±30°
working speed:
in grinding: 0.5-50r/min
center taper of headstock and tailstock sleeve: MORSE5
amount of cross movement of grinding carriage: 280mm
speed of grinding wheel spindle: 2145-2860
wheel peripheral speed: 45
wheel size:
O.D. 400-300mm
I.D. 203mm
width 10mm
total power of machine: 30kw
