HJMTC SK76XX Internal thread grinding machines
- 300 Set / Sets per Month
- FOB Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Internal Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Shaanxi, China | |
| Brand Name | HJMT | Model Number | SK7620A |
Product Description
Specifications

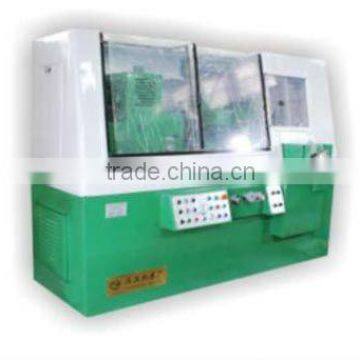

It is a CNC machine for grinding internal threads.
The machine can be used to grind cylindrical or conical internal threads with V-typed, or circular profiles. It can also be used in batch production of steering worm nut for the auto steering worm factory.
Specifications:
Max. chuck diameter: 300mm
Max. workpiece length: 200mm
Center height: 200mm
Thread diameter ground: V-typed 25-200mm; Circular 25-100mm
Max. thread length ground: Conical 80mm; Cylindrical 125mm
Thread pitch ground: Metric 1-24mm; British 3/1"-20/1"
Max. helix angle of thread ground: R8°, L8°
Number of starts: 1,2,3,4
working accuracy:
For V-typed thread with the pitch not more than 6mm
adjacent ±0.003mm
on 25mm ±0.005mm
on 100mm ±0.006mm
