CNC leadscrew grinding machine
- 0 per Month
- Shanghai
You May Like
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 250 mm | |
| Max. Grinding Length | 1360 mm | Place of Origin | Shaanxi, China | |
| Brand Name | HJMT | Model Number | SK7432 x 12 | |
| Voltage | customised | Dimension(L*W*H) | 4700*2100*1860 mm | |
| Weight | 5800 Kg | Certification | ISO9001:2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
A CNC leadscrew grinding machine with 4 nc axes, 3 of which can perform the linkage motion.

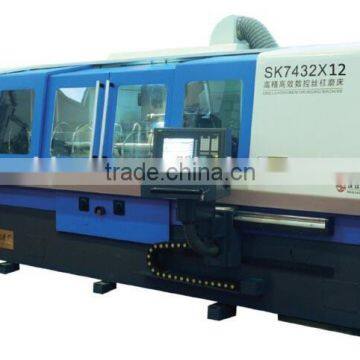

Appearance of SK7432X15 CNC leadscrew grinding machines
Grinding a leadscrew on SK7432 x12
Technical data
model | SK7432×12 | ||
max. mounting diameter | 320 mm | ||
max. center distance | 1200 mm | ||
center height | 180 mm | ||
max. grinding diameter (with steady rest) |
250 mm | ||
min. grinding diameter | 20 mm | ||
max. grinding length | 1000 mm | ||
Pitch range | Metric | 1.5-48 | |
British (inch) | 2-18 | ||
module | 1-18π | ||
helix angle | ±25° | ||
number of thread start | 1-99 | ||
workpiece rotation | 0.5-75 r.p.m | ||
table return speed | 0-3 r.p.m. | ||
wheelstock advance and retreat speed | 0-1 r.p.m. | ||
system resolution (C,X,Y,Z) | 0.001° | ||
wheel spindle speed | 1720-2150 r.p.m. | ||
max. wheel velocity | 45 m/s | ||
wheel size (D × H) | Ø500-Ø400 × 10 mm | ||
machine dimension (L × W × H) | 4700 × 2100 × 1860 mm | ||
machine weight | 12500 Kg | ||
pitch error | V 2πp | 0.006 mm | |
V 300p | 0.012 mm | ||
V up | 0.034mm | ||
surface roughness | 0.32 μm | ||
Fumigated strong seaworthy wooden package
Good service promts a good machine better service to its user. We would devote our best effort to creat more benefit to our customers. and grow up to a higher level in the future.
Complete before, in, and after sale service are provided to every user of our machines.
Shaanxi Hanjiang Machine Tool Co.,Ltd., a unique and profession company in R&D, manufacturing various types of thread grinding machines and the related products(ballscrews, linear guides, screw rotors,etc.) since the year of 1969 in China.
In the past decades more hundreds of thread grinding machines had been succesfully delivered to users in the world, such as , Russia, Japan, India, Mexico, Iran,etc.
Customers form the world are invitated to join us, a professional thread products family.
