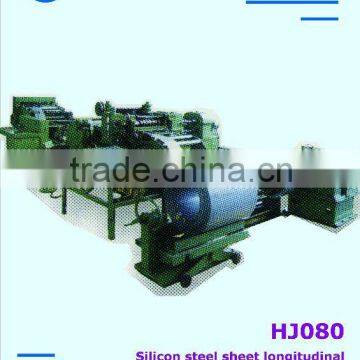

Splitting machine for silicon steel sheets

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China	Brand Name	HJMT
Model Number	HJ080A	Type	Plant
Electricity Generator Type	Other, transfomer silicon steel splitiing line

.The machine is mainly used in electric equipment industry for cutting silicon steel sheets

Main specifications:

width of silicon steel sheet to be cut 100-1250mm

thickness of silicon steel sheet to be cut 0.20-0.50mm

I.D. of silicon steel coil to be cut 485-515mm

O.D.of silicon steel coil to be cut 800-1100mm

weight of silicon steel coil to be cut 6 tons

expansion-contraction scope of unwinder reel 480-520mm

center height of splitting machine 1200mm

cutter shaft diameter 125mm

adjustable scope between upper & lower cutter shafts 227-253mm

tension force adjusting scope of tensioner 0-1500kg

expansion-contraction scope of winder reel 480-500mm

splitting width scope 40-1250mm

splitting speed 120 meters/min.

total power of the splitting line 97kw

overall dimensions(LxWxH) 13000x7000x1800mm
