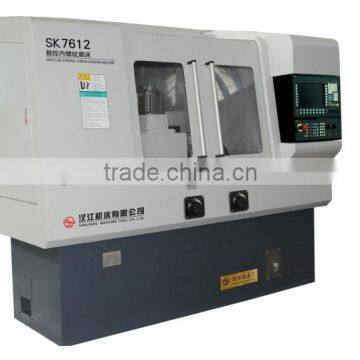

SK7612B CNC internal thread grinding machine
- 80 Set / Sets per Month
- Shanghai
You May Like
Product Details
| Condition | New | Type | Internal Grinding Machine | |
| CNC or Not | CNC | Max. Grinding Diameter | 125 mm | |
| Max. Grinding Length | 440 mm | Place of Origin | Shaanxi, China | |
| Brand Name | HJMTC | Model Number | SK7612 | |
| Voltage | as customised | Power(W) | 23 0000 | |
| Weight | 7 Tons (approximately) | Certification | ISO9001:2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
SK7612 CNC internal thread grinding machine is developed for various types of internal thread grinding with the requirement of high efficiency and high accuracy.
It is used for the worm steering double-arc type nuts of automobiles in mass production. And it also can be applied for grinding various internal threads of ring gauges in small batch.
Siemens 828D CNC system is adopted to control working table travel (Z axis), wheel feed(X axis), working spindle rotation(C axis), helix angle swivel (A axis), wheel spindle motor and dressing motors.
Also, special functions like automatic grinding cycle, grinding wheel on-line balancing and error correction in grinding, etc. are served as required. Diamond disc mounted on the dresser can dress out various tooth profiles with X axis, Y axis interpolation function. Diamond crusher is also applied on the dresser for high efficiency forming dressing in the mass production. X axis, Z axis are equipped with linear grating scale, C axis is equipped with circular grating scale, full closed loop control is performed. Helix angle swivel is in the control of servo motor, related parameters can be set on the interface easily.
max. workpiece length | 200 mm | |
center height | 200 mm | |
max. chuck size | 300 mm | |
min. diameter ground | 16 mm | |
max. diameter ground | 125 mm | |
table travel | 440 mm | |
pitch | Metric | 0.5~24 mm |
British | 3~20 T.P. I. | |
max. length ground | 110 mm (cylindrical thread) | |
max. helix angle | 12°(left/right) | |
number of start | any | |
working spindle speed | 0.2~100 r. / min. | |
wheel carriage travel | 0~220 mm | |
resolution | linear axes | 0.001 mm |
rotary axes | 0.001° | |
max. wheel spindle speed |
| 2400 r. /min. |
wheel size | max. diameter |
|
min. diameter |
| |
Machine weight | 5000 Kg (app.) | |
Logistics service is operated by the reliable logistcs service providers.
Customer foremost service is applied through the whole sale process. We do not provide you technical helps to find the best machine for you , but also the service worth experincing.
