CNC High Precision Internal Thread Grinding Machine
- T/T
You May Like
-
Splitting Machine for Silicon Steel Sheets(serial Products)
-
Silicon Steel Sheet Longitudinal Splitting Line
-
HJMTC ZX75-5T Silicon Steel Sheet Longitudinal Splitting Line
-
Silicon Steel Sheet Longitudinal Splitting Line(5Tons)
-
Silicon Steel Sheet Longitudinal Splitting Line
-
Silicon Steel Sheets Splitting Machine
Product Details
| Condition | New | Type | Internal Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Shaanxi, China | |

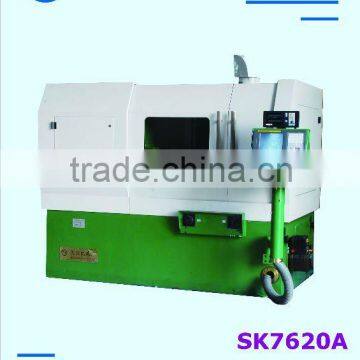

| Brand Name | HJMT | Model Number | SK7620A |
Product Description
Specifications
t can be used in batch production of steering worm nut for the auto steering worm factory.
specifications:
Max. chuck diameter: 300mm
Max. workpiece length: 200mm
Center height: 200mm
Thread diameter to be ground:
V-typed: 25-200mm
Circular: 25-100mm
Max. thread length ground:
Conical: 80mm
Cylindrical: 125mm
Thread pitch to be ground:
Metric: 1-24
British: 3/1"-20/1"
Max. helix angle of thread to be ground: R 8 degree, L 8 degree
Number of starts: 1,2, 3, 4
Work rotation:
in grinding: 0.3-15, 0.6-30
in rapid return: 60, 100
Max. longitudinal traverse of table: 440
Cross movement of wheelhead: 0-60
working accuracy:
For V-typed thread with the pitch not more than 6mm
adjacent: ±0.003
on 25mm: ±0.005mm
on 100mm: ±0.006mm
