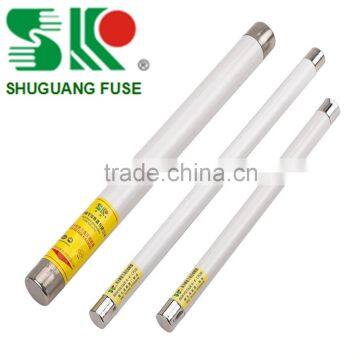

high voltage current limiting fuses
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
porcelain housing high voltage fuse
-
40.5kv high voltage HRC current limiting fuses for transformer protection/porcelain material fuses/ CE,UL certificate
-
the high voltage fuses
-
H.V HRC fuse for transformer protection 0.5A~3.15A
-
H.V HRC fuse for transformer protection
-
the AC fuse types XRNP for transformer protection
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SR | |
| Model Number | XRNP1, XRNP2 | Usage | High Voltage | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Applications
H.V HRC current-limiting fuses type XRNP for transformer protection is mainly used in AC 50HZ, rated voltage 3.6-40.5KV, rated current up to 6.3A circuit for protection transformers from overload and short-circuit.
It conforms to IEC282-1,BS and GB15166.2.
Desing Features
XRNP type H.V HRC current-limiting fuses is insert installation. It is convenient for install and removal. The fuse link made of high-resistance metal wire and low-resistance metal wire. They are sealed in the fuse tube filled with chemically treated high-purity quartzsand. The fuse tube is made from heat tesistance, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link melts causing arc, quartz sand dxtiguish the arc immediately, signaling the melting or automatically cutting the circuit.
Model and Implication
| Models | Rated voltage(kV) | Rated current(A) | Rated breaking current(kA) | Lengtg(mm) L | Diameter(mm) D | Weigth(kg) |
| XRNP1 | 3.6 | 0.5,1,2,3.15,6.3 | 50 | 142 | 22(25) | 0.19(0.23) |
| XRNP1 | 7.2 | 0.5,1,2,3.15,6.3 | 50 | 142(195) | 22(25) | 0.19(0.23) |
XRNP1 | 12 | 0.5,1,2,3.15 | 40 | 195(192) | 22(25) | 0.23 |
XRNP1 | 24 | 0.5,1,2,3.15 | 40 | 355 | 22(25) | 0.43 |
XRNP1 | 40.5 | 0.5,1,2,3.15 | 50 | 465 | 51 | 0.55 |
XRNP2 | 12 | 0.5,1,2,3.15 | 50 | 260 | 51 | 1.12 |
According to the requirements specification can be customized.
Dimensions
