Home > Products > Aviation and marine vessels > Cable heat shrink tubing

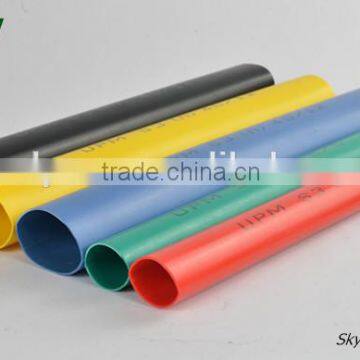

Cable heat shrink tubing
Negotiable
/ Meter
122 Meters(Min.Order)
- 3000 Meter / Meters per Month
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S3(n) | Type | Other, Heat shrinkable tube | |
| Material | PE |
Product Description
Specifications
1.Halogen free,environmental friendly2.adhesive-lined,water proof
3.seal aginst moisture
4.high resistance to abrasion
Clase del voltaje 1kV~15kV
Ideal para la proteccion de cables y terminaciones en aplicaciones de baja tension. Su contraccion llega hasta cuatro veces de su tamano, en algunas de sus medidas. También es muy efectivo como protector contra la corrosión.
Usos
Proteccion y Aislamiento de cables y/o terminales de baja tension, (incluso en aplicaciones subterraneas).
Caracteristicas/ Ventajas
Halogeno libre, ambiente seguro
No-llama Inhibidor
Con adhesivo,pegamento-alineado, impermeabilice y sello contra la humedad
Alta resistencia a la abrasion y al impacto
Gama de temperaturas
Temperatura de funcionamiento : -55 ~ 105
Temperatura del encogimiento : 125
Color:Negro,rojo,transparentes
Especificación ROHS
Verdadero
Especificación ROHS
Verdadero
Material
Poleolefina, cross linked (POX)
Rigidez Dielectrica
20 kV/mm
Especificacion ROHS
Verdadero
Referencias reciprocas del codigo de producto
Raychem/Tyco : MWTM
DSG Canusa : CFM
3M : IMCSN
LG : LG-PMWT
Detalles tecnicos
| Prueba | Metodo | Valor tipico |
| Fuerza extensible | ASTM D2671 | 12Mpa |
| Alargamiento | ASTM D2671 | 400% |
| Proporcion | ASTM D792 | 1.15 |
| Alargamiento despues del envejecimiento de calor(168 hrs en 150) | ASTM D2671 | 350% |
| Fuerza extensible despues del envejecimiento de calor | ASTM D2671 | 12Mpa |
| Flexibilidad de la baja temperatura (4 hrs en -55) | ASTM D2671 | Ningún agrietarse |
| Duraza (Shore D) | ASTM D2240 | 55~60D |
| Choque del calor (4hrs en 200) | ASTM D2671 | Ningún agrietarse o flujo |
| Punto que ablanda adhesivo | ASTM-E28 | 85 |
| Fuerza adhesiva de la cáscara a P.E. | ASTM D1000 | 110N/25mm |
| Fuerza adhesiva de la cáscara al aluminio | ASTM D1000 | 80N/25mm |
| Fuerza dielectrica | ASTM D2671 | 20kV/mm |
| Resistencia de volumen | ASTM D257 | 1014Ω.cm |
| Corrosion de cobre | ASTM D2671 | Ninguna corrosión |
| Absorcion de agua | ASTM D570 | 0.5% |
| Resistencia fungosa | ASTM G21 | Ningún crecimiento |
Seleccion del producto
| Codigo de producto | Min. Pared gruesa despues de la recuperacion libre(mm) | Tubo de forma | Longitud estandar por pedazo (m) | Embalaje estandar (pc/carton) | Tamano de caja(cm) |
| 10/3 | 1.7 | 1.22 | 800 | 127*39*44 | |
| 12/4 | 2.0 | 1.22 | 650 | 127*39*44 | |
| 16/5 | 2.2 | 1.22 | 450 | 127*39*44 | |
| 19/6 | 2.5 | 1.22 | 350 | 127*39*44 | |
| 22/6 | 2.5 | 1.22 | 250 | 127*39*44 | |
| 25/8 | 2.5 | 1.22 | 190 | 127*39*44 | |
| 28/6 | 2.5 | 1.22 | 170 | 127*39*44 | |
| 33/8 | 2.5 | 1.22 | 130 | 127*39*44 | |
| 35/12 | 2.5 | 1.22 | 100 | 127*39*44 | |
| 40/12 | 2.5 | 1.22 | 90 | 127*39*44 | |
| 45/13 | 2.5 | 1.22 | 70 | 127*39*44 | |
| 55/16 | 2.7 | 1.22 | 60 | 127*39*44 | |
| 65/19 | 2.8 | 1.22 | 50 | 127*39*44 | |
| 75/22 | 3.0 | 1.22 | 40 | 127*39*44 | |
| 85/25 | 3.0 | 1.22 | 30 | 127*39*44 | |
| 95/25 | 3.0 | 1.22 | 25 | 127*39*44 | |
| 115/34 | 3.0 | 1.22 | 25 | 127*39*44 | |
| 130/36 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 140/42 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 150/42 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 160/50 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 175/58 | 3.0 | 1.22 | optional | optional | |
| 200/65 | 3.0 | 1.22 | optional | optional | |
| 230/75 | 3.0 | 1.22 | optional | optional | |
| 260/85 | 3.0 | 1.22 | optional | optional |
El pedido
Al pedir este producto, especifique por favor 1) Codigo de producto 2) Cantidad requerida
