Home > Products > Solar panel raw material > China Factory Supply Solar Panel Raw Material With Good Quality
China Factory Supply Solar Panel Raw Material With Good Quality
- Shanghai
- T/T
You May Like
-
Wholesale REOO Solar Module Raw Material for Manufacturing Solar Panel
-
MC3 Pipe Crimping Tools Easy to Use With Lower Price
-
2016 Popular in USA!!!Reoo Brand Solar Panel Laminating Machine,solar Power Production Line,TUV Certification
-
Hot Sale in Vietnam!Reoo Laminator of Semi Automatic,use for Solar Cell Production Line
-
Pipe Crimping Tool,used for Solar Power System.Crimping Range From 2.5 to 6mm2
-
REOO Semi Automatic Laminating Machine 2200mm*1100mm,PLC Control System,easy to Clean
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | raw material | Type | Other, solar raw material |
Product Description

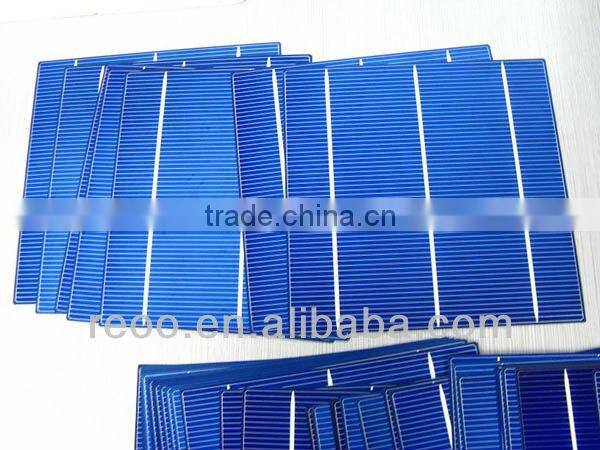

156*156mm Polycrystalline silicon solar cell
Model | Efficiency | Power | Max power current | Max power voltage | Short Circuit Current | Open Circuit Voltage | Fill Factor |
Eff (%) | Ppm(w) | Ipm(A) | Vpm(V) | Isc(A) | Voc(V) | FF(W) | |
SPSM156M-V3 | 17.5-17.7 | 4.259 | 8.174 | 0.521 | 8.537 | 0.628 | 79.436 |
SPSM156M-V2 | 17.3-17.5 | 4.210 | 8.096 | 0.520 | 8.501 | 0.627 | 78.988 |
SPSM156M-V1 | 17.1-17.3 | 4.161 | 8.018 | 0.519 | 8.468 | 0.625 | 78.633 |
SPSM156M-SI | 16.9-17.1 | 4.113 | 7.940 | 0.518 | 8.425 | 0.623 | 78.356 |
SPSM156M-S2 | 16.7-16.9 | 4.064 | 7.846 | 0.518 | 8.370 | 0.622 | 78.060 |
SPSM156M-H1 | 16.5-16.7 | 4.015 | 7.767 | 0.517 | 8.367 | 0.622 | 77.160 |
SPSM156M-H2 | 16.3-16.5 | 3.967 | 7.702 | 0.515 | 8.287 | 0.622 | 76.960 |
Dimension 156mm*156mm ±0.5mm
Front Blue silicon nitride antireflection coatings 1.6mm silver busbar
Back Full-surface aluminum back -surface field 2.5mm (silver aluminum ) continuous soldering pads
125* 125 mm Polycrystalline silicon solar cell
Model | Efficiency | Power | Max power current | Max power voltage | Short Circuit Current | Open Circuit Voltage | Fill Factor |
Eff (%) | Ppm(w) | Ipm(A) | Vpm(V) | Isc(A) | Voc(V) | FF(W) | |
SPSM125M-V3 | >17.7 | 2.766 | 5.288 | 0.523 | 5.577 | 0.626 | 79.214 |
SPSM125M-V2 | 17.5-17.7 | 2.734 | 5.258 | 0.520 | 5.553 | 0.624 | 78.916 |
SPSM125M-V1 | 17.3-17.5 | 2.703 | 5.218 | 0.518 | 5.517 | 0.622 | 78.769 |
SPSM125M-SI | 17.1-17.3 | 2.672 | 5.168 | 0.517 | 5.501 | 0.620 | 78.337 |
SPSM125M-S2 | 16.9-17.1 | 2.641 | 5.117 | 0.516 | 5.477 | 0.618 | 78.019 |
SPSM125M-H1 | 16.7-16.9 | 2.609 | 5.067 | 0.515 | 5.449 | 0.616 | 77.739 |
SPSM125M-H2 | 16.5-16.7 | 2.578 | 5.006 | 0.515 | 5.410 | 0.616 | 77.357 |
Dimension 125mm*125mm ±0.5mm
Front Blue silicon nitride antireflection coatings 1.5mm silver busbar
Back Full-surface aluminum back -surface field 3 mm (silver aluminum ) continuous soldering pads

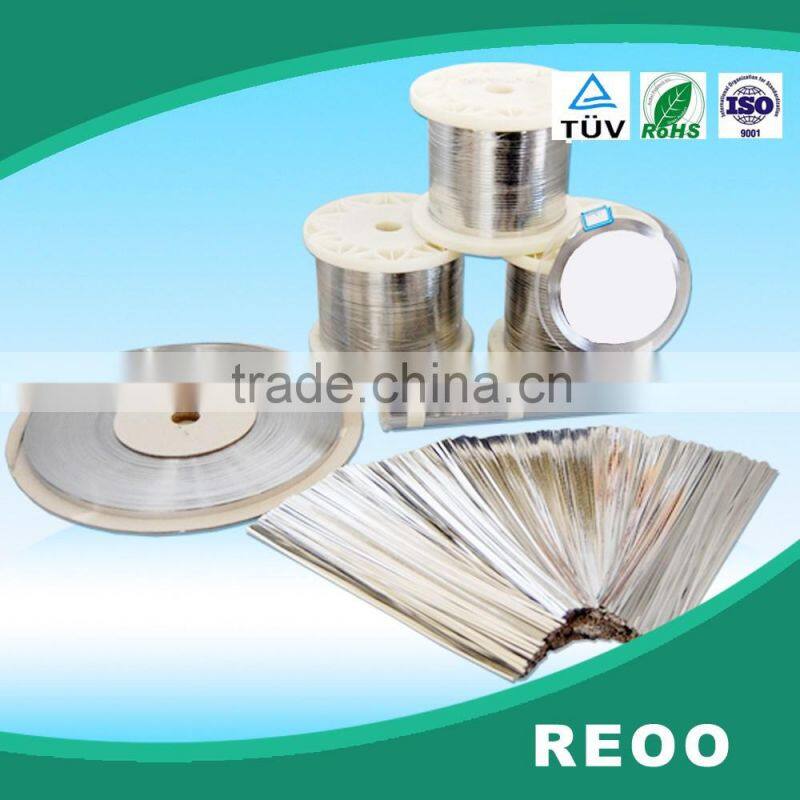

Soldering ribbon
Product Overview
The soldering ribbon is used for soldering the solar cells. The quality of the ribbon affects the current collection efficiency of photovoltaic modules. We could be customized for our customers.
Specification
NO. | Item | Testing standard |
1 | Metal content | Coating: Sn60/Pb40 Basic material:Cu≥99.95% |
2 | Basic material appearance | Light mental appearance; without decoloration,black spot and rust; without oxidation, burr or other defects. |
3 | Size | Basic material thickness:±0.005mm Basic material width:±0.05mm Coating thickness:±0.005mm Length:±1mm |
4 | Ribbon elongation | ≥22% |
5 | Strength of extension | ≥150Mpa |
6 | Resistance value | ≤0.0265mmΩ/m2 |
7 | Test temperature | 22℃ |
8 | Camber | 1m≤5mm |
9 | Solderability | Use the 50w soldering iron solder the bus bar and ribbon, without abnormity. |
10 | Ribbon appearance | The appearance looks smoothly, no damage,tin dross≤1mm,pinhole≤3 |

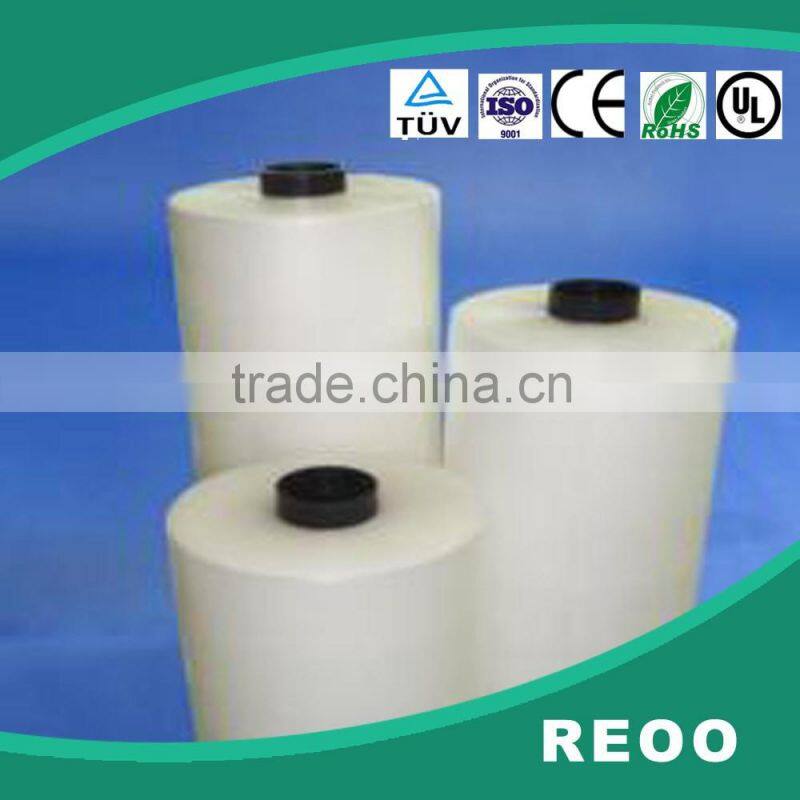

EVA FILM for manufacturing solar panel
product model:
JCC EVA Solar cell encapsulation film model:
Fast Cure:JCC-105; High penetration type:JCC-105 -T
product specification :
1,Lamp shape:EVA Ultra Barrier Solar Films are Double stripe type;and also
can manufacture products of other stripes according to customers’ needs.
2,Product thickness:We can supply different thickness arranging from
0.30-0.80mm, the thickness of conventional product are 0.40mm and 0.50mm,
thickness tolerance:±0.03mm.
3,Product width: any width below 2000mm, and the normal width: 350,550,
680,810,820,980,1000mm, width tolerance: ±3mm
4,Length of each roll:100m,Tolerance:±1 m can manufacture according
to customers’ needs

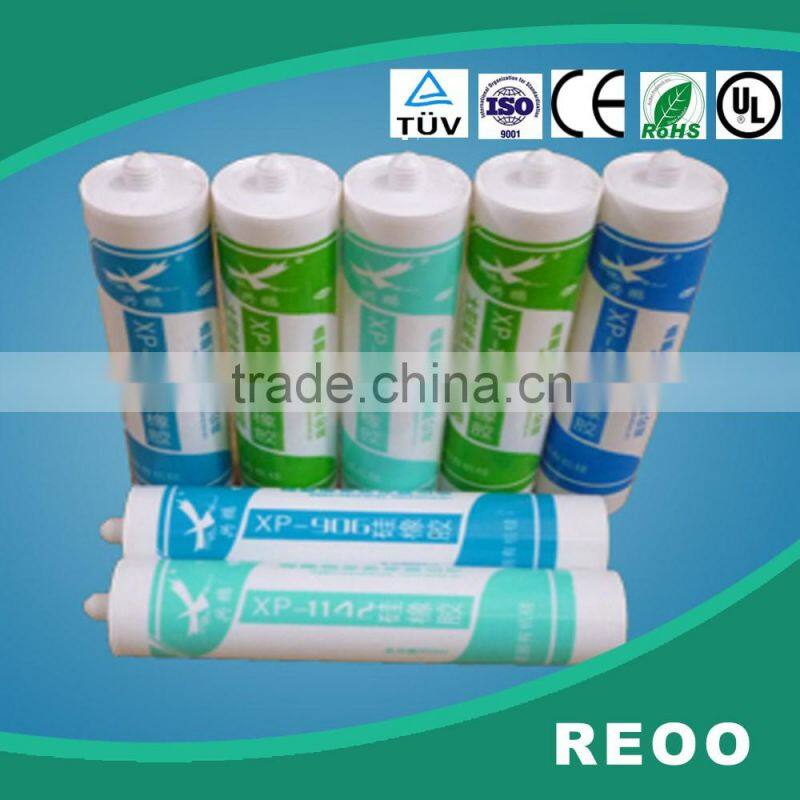

1527 Silicone Sealant For PV Modules
PRODUCTION DESCRIPTION
White, UL certificated, super resistance to ultra violet(UV),
rain, contamination and hail. For sealing the side frames of
solar cell, sealing/adhesive the junction boxes of solar cell
and for sealing the solar energy lamps.
TYPICAL APPLICATIONS
•Sealing the frames of solar cell.
•Sealing/adhesive the junction boxes of solar cell .
•Sealing the solar energy lamps.

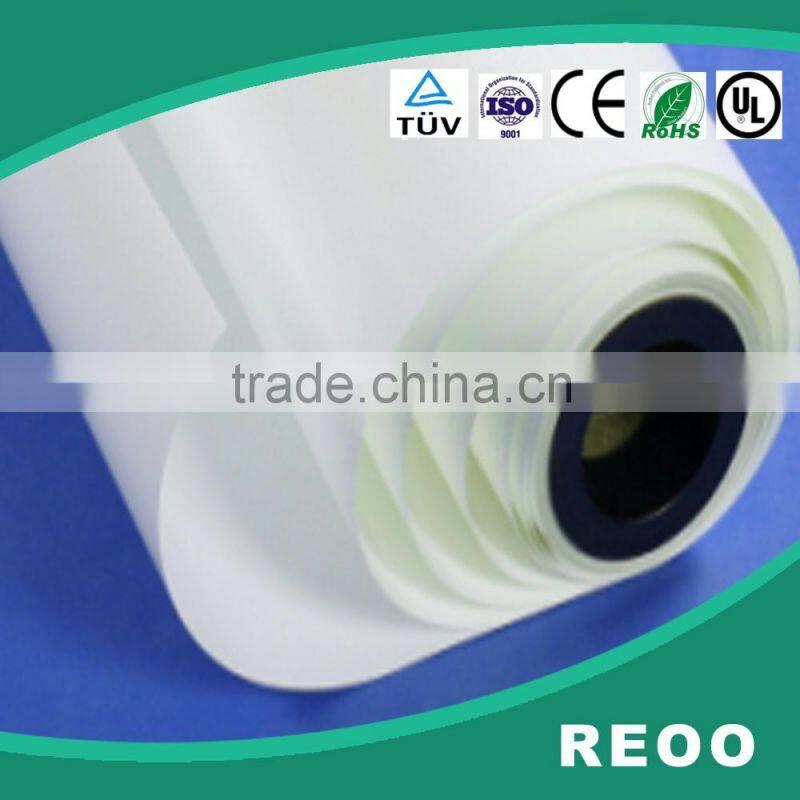

PET back sheet
HY-PET-25(white)
![]() | Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
