REOO Semi-automatic Solar Panel Laminator Machine, REOO Solar Panel Laminator
- Shanghai
- T/T
You May Like
-
Newest Full Automatic Big Solar Module Laminator With SEIMENS PLC
-
Saving Power Easy Operation Semi Automatic Laminator Solar Module Machine
-
Solar Module Laminator With Lower Pirce for Solar Panel Production Line
-
Full Auto Solar PV Laminator Provide Training and Installation
-
Turn Key REOO Full Automatic Laminating Machine for Solar PV Module
-
REOO Solar Semi Automatic Lamination Machine and Oil Heating
Product Details
| Place of Origin | Jiangsu, China | Brand Name | REOO | |
| Model Number | RO-B1, RO-B1 | Type | Other, Solar panel laminator |
Product Description

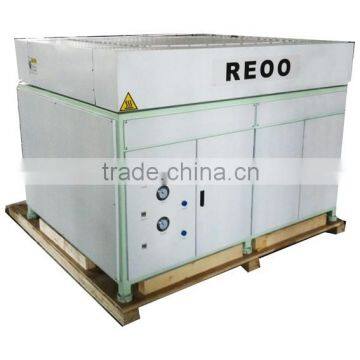

Solar Panel Laminator
As an important equipment for manufacturing solar module, the laminator is used to laminate glass, EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet.
Dimension: 2700mm x 1800mm x 1300mm
Laminating area: 2200mm x 1100mm
Total power consumption: 18KW (according to customer's need)
Compressed air: 0.6 - 1.0 MPa.
| Temperature control: | PID intelligent temperature control system |
| Temperature uniformity in working area: | ≤ ± 3 ℃ |
| Temperature control accuracy: | ≤± 1 ℃. |
| Temperature control range: | 30℃ - 180 ℃ |
| Laminating time: | 2-4 mins ( excluding sollidification time ) |
| Heating rate: | 135℃ at room temperature with 50 to 60 minutes |
| Vacuum rate: | 30 L/S |
| vacuum Time: | 90 seconds |
| Silicone sheet size: | 2650mm*1650mm |
| Production Capacity: | |
| 300 WP*1 pieces/ time*3time/h*8hours*300days= 2.16 MWP / year. 8 hours/day | |


More detailed operation, please click here:
/watch?v=kfIC9acnnJY&feature=youtu.be
/watch?v=x7YXj7wrsQQ&feature=youtu.be
/watch?v=CyvKkhrFi5A&feature=youtu.be
Packing:
1) All the equipment, tools, accessories and goods are suitably packed.
2) All packages are liable to be opened for customs' examination.
3) All the packages are designed to facilitate.
4) Each package has the printed shipment information.
Delivery time:
Around 20 - 45 days after received the advance payment.
Installation:
We arrande our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,
buyer pay for the cost.
![]() | Holly Song
NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, China Zip.226400 Mobile number: +86 187 5282 7203 Tel: +86 513 8410 5399 Fax: +86 513 8410 5505 Skype: reooholly What's App:+86 187 5282 7203 |
