Home > Products > industrial furnace > nature ruby, rubine, sapphire , gem heat treatment furnace multi-functional gem heat treatment furnace
nature ruby, rubine, sapphire , gem heat treatment furnace multi-functional gem heat treatment furnace
- Zhengzhou Qingdao etc.
- T/T Credit Card
You May Like
-
CE approved electric sintering gem Furnace for Heating Treatment
-
gem heating processing furnace / zircon gem heat treatment furnace up to 1700C
-
7x10-3Pa vacuum gem heat treatment furnace for sintering tourmaline,agate annealing furnace
-
Large chamber atmosphere sintering furnace for gem heat treatment
-
Energy saving vacuum atmosphere furnace for gem heat treatment
-
High quality protective atmosphere heat treatment furnace for gem
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Henan, China | |
| Brand Name | CYKY | Model Number | CY-V1200/1400/1700 gem heat treatment furnace | |
| Voltage | as your request | Power(W) | 12KW | |
| Dimension(L*W*H) | 870x67x1700mm | Weight | 230KG | |
| Certification | CE/ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Temperature Gem Heat Treatment Furnace/gem heating furnace
Brief description of Gem Heat Treatment Furnace
The gem heat treatment system is used for thermal process technology of color-changing and optimization to ruby,sapphire,tourmaline, agate and other kinds of precious stones.It can be also used for other thermal process to inorganic materials, special ceramics, high hard materials,such as sintering,degassing,
annealing,etc under vacuum and atmosphere controlled environment.

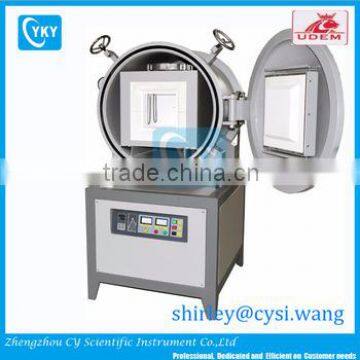

Gem Heat Treatment Furnace
Features of Gem Heat Treatment Furnace
1.Our gem heating treatment equipment adopts high purity alumina ceramic fiber without contamination to gem.
2.Built-in micro-computer automatic control,pre-stored multi time-temperature thermal process curve,without human attendance,completely avoid human errors during working
process.
3.Color LCD touch screen panel,easy operation,switch freely between manual and automatic.
4.Excellent alarm system,good protection to the device.
5.As for some process technology of low heat temperature and batch production,convection heating is a better
choice.
Gem Heat Treatment Furnace
Technical parameters of Gem Heat Treatment Furnace
Model | CY-V1600 | CY-V1400 | CY-V1200 |
Max. temperature | 1600℃ | 1400℃ | 1200℃ |
Working temperature | 1500℃ | 1300℃ | 1100℃ |
Temperature accuracy | +/-1℃ | ||
Heating rate | 0-20C/min | 0 -20C/min | 0-30C/min |
standard chamber size | the chamber size is customized. 150*150*150mm ; 200*200*200mm; 300*300*300mm ; 400*400*400mm ; 500*500*500mm | ||
Temperature control | Digital 50 segments programmable | ||
Max. vacuum level | 7*10ˆ(-3)Pa | ||
Heating element | MoSi2 rods | SiC rods | resistance wire |
Refractory material | Alumina ceramic fiber | ||
Thermal couple | B type | S type | K type |
Working voltage | AC 110-480V 50-60Hz | ||
Warranty | 12 month (exclusive wearing part) | ||
More photos of Gem Heat Treatment Furnace
Application of Gem Heat Treatment Furnace
1.We are a manufacturer so that we have the punctual delivery time.
2.One sales representative serves you from inquiry to products shipped out.Communicate directly and conveniently.
3.Professional R&D team.
4.Strict QC.
5.Smooth shipping.
6.Rich experience. We do OEM services.Our customers are all over the world like USA, UK, Russia, Korea, Southeast
Asia, etc. so that we are quite experienced.
7.Certificate: All our products are CE approval.
8.Fast reply: Our team will respond your requests within 8-working-hour
Zhengzhou CY Scientific Instrument Co.,Ltd locate in hi-tech zone, Zhengzhou city.It is a high-tech companies that engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches.Mainly focus on Our main products include:microwave sintering furnace, dental porcelain
furnace, tube furnace,muffle furnace,,zirconia sintering furnace,Phosphor powder sintering furnace,crystal sintering
furnace, battery material sintering furnace, CVD system, relative accessories and etc. determined to do advanced
materials preparation equipment manufacturers and suppliers of leader.
