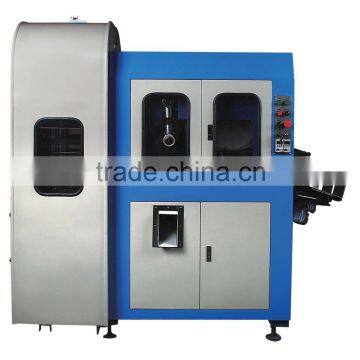

WB360 Automatic Paper Hole Punching Machine for notebook, calendar

WB360 Automatic Paper Hole Punching machine:

Description

Sheets are safely fed from the top of stack by pick-up beak, one bite of maximum
2.5mm each time (the bite thickness can be adjusted, variable according to quality
of the paper), then the sheets turned over by means of a wheel and shifted into
the punching unit where they are aligned laterally and longitudinally and then
punched automatically. The punched sheets are kept in numerical sequence and collected on a transport belt separately driven, or a jogger for further processing
(2 discharge options are available).

Features:
1) Sheet feeding, punching and delivering are all automatic, only one operator is
needed, safe and efficient
2) Pile up the sheets by delivery unit without stopping the machine
3) Keep the order of sheets by a convey wheel
4) Front guide (push hand) and side guide ensure the consistency and accuracy of punching position
5) Quality gears ensure a smooth operation and low noise
6) Convenient to change and adjust the sheets' specifications
7) A wide range of optional punching bars are available

Data:
1) Paper thickness: 60-180g/sqm
2) Max. sheet: 360 x 360mm
3) Min. sheet: 140 x 100mm
4) Max. sheets-biting thickness: 2.5mm
5) Max. punching speed: 5,000 times per hour
6) Electrical equipment: 380V; 3-phase; 50/60Hz; 2.2kW, Other voltage available upon requests
7) Weight: 1,500kg
