Home > Products > New Products > China Manufacturer 1x32 PLC Fiber Optic Splitter With Best Price
China Manufacturer 1x32 PLC Fiber Optic Splitter With Best Price
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YUXIN | |
| Model Number | PLC Splitter |
Product Description

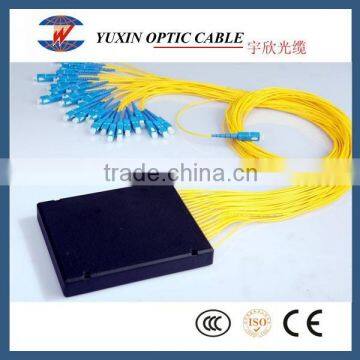

China Manufacturer 1x32 PLC Fiber Optic Splitter With Best Price
Introduction:
PLC splitter are based on the Planar Waveguide Technology.They provide a cost effective and space saving networking solution.They are the key part in FTTX network and are responsible to distribute the signal from central office to numbers of permises.They have very wide range of operating wavelength from 1260nm to 1620nm.With its compact size,these splitters can be unilized in in-ground and aerial pedestals as well as rack mount systems.
Features:
1.HIgh return loss.
2.Best design.
3.Low insertion loss.
4.Excellent environmental and Mechanial stability.
Application:
1.FTTX
2.Passive Optical Networks.
3.Local Area Networks.
4.CATV
5.Test Equipment.
Main Technical Parameters:
Parameter | Specification | ||||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||||
Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 1x64 |
Insertion Loss (dB) Max. * | <4.0 | <7.3 | <10.8 | <14.0 | <17.0 | <4.2 | <7.6 | <11.2 | <14.5 | <18.2 | <21.5 |
Uniformity (dB) Max.* | <0.6 | <0.8 | <1.0 | <1.5 | <2.0 | <0.8 | <1.2 | <1.5 | <2.0 | <2.5 | <2.5 |
PDL(dB)Max.* | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.3 | <0.3 | <0.4 | <0.4 | <0.4 |
Directivity (dB) Min * | 55 | ||||||||||
Return Loss (dB) Min * | 55(50) | ||||||||||
Operating Temperature (°C) | -40~ +85 | ||||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||||
Fiber length | 1m or custom length | ||||||||||
Fiber Type | Corning SMF-28e fiber | ||||||||||
Connector Type | Custom specified | ||||||||||
If you have any interest about our products,please contact with me anytime.
Contact with me:
Skype:mickeyma90
Phone:+8618758357139
