2015 HOT Sale Optic Fiber Pigtail Cable From China Factory
- Ningbo Or Shanghai
- T/T
You May Like
-
2015 High Quality Optic Fiber Cable Connector From China Factory
-
MT-RJ Optic Cable Connector From China Professional Manufacturer
-
China Manufacturer Professionally Provide SC Series Optic Fiber Connector
-
China Manufacturer Professionally Provide All Kinds Of Optic Fiber Connector
-
LC Optic Cable Connector From China Factory
-
24 Port Patch Panel Used For SC Type Fiber Optic Adapter With Reasonable Price
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YUXIN | |
| Model Number | pigtail |
Product Description

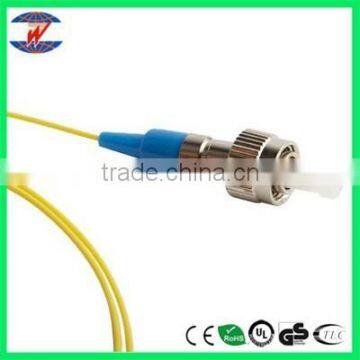

2015 HOT Sale Optic Fiber Pigtail Cable From China Factory
Introduction:
Fiber Optical Pigtail is a fiber cable end with fiber optic connectors at only one side of the cable while leave the other side no connectors, so that the connector side can link to the equipment and the other side can be melted with optical cable fibers. Fiber optic pigtails are used to achieve accurate mounting for precision alignment of fiber optical components. The fiber pigtails are usually used with fiber optic management equipment like ODF, splice closures and cross cabinets. We supply 10G 50/125, 62.5/125, 50/125 multimode optic pigtail with SC, ST, FC, LC MT-RJ, SC/APC, FC/APC, E2000 fiber optic connectors.
Main Technical Parameters:
Item | SM | MM | |||
Connector Type | LC SC ST FC fiber optic pigtail | ||||
Fiber Diameter(um) | 9/125um | 50/125um | 62.5/125um | ||
Cable OD(mm) | 0.9 | ||||
length |
|
|
|
|
|
Endface Type | PC | UPC | APC | PC | PC |
Typical Insertion Loss(dB) | <0.30dB | <0.30dB | <0.30dB | <0.30dB | <0.30dB |
Return Loss(dB) | >45dB | >50dB | >60dB |
|
|
angle | N/A | N/A | 8±0.3° | N/A | N/A |
Insert-pull Test(dB) | <0.20dB | <0.20dB | <0.20dB | <0.20dB | <0.20dB |
Interchangeability(dB) | <0.20dB | <0.20dB | <0.20dB | <0.20dB | <0.20dB |
Anti-tensile Force(N) | >10 | ||||
Temperature Range(ºC) | -40ºC~+80ºC | ||||

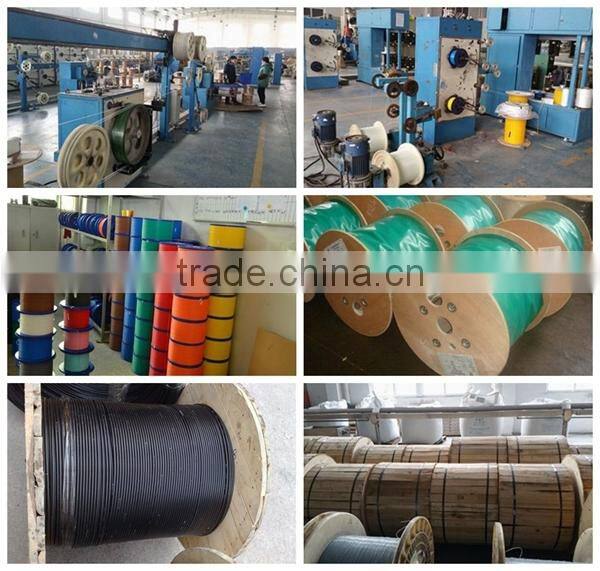

About Us:
