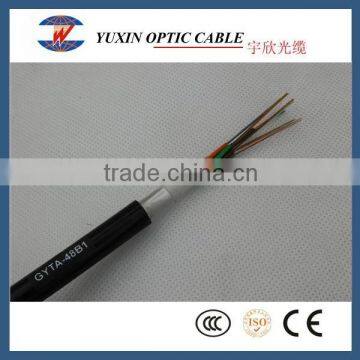

4/6/8/12/24/48 Core GYTA Armored Fiber Optic Cable From Zhejiang Manufacturer
- Ningbo Or Shanghai
- T/T
You May Like
-
4/6/8/12/24 Core GYXTC8S Self Supporting Outdoor Fiber Optic Cable From Zhejiang Manufacturer
-
4/8/12/24/48 Core SM GYTY53/GYTA53 Outdoor Underground Fiber Optic Cable From Zhejiang Manufacturer
-
4/8/12/16/24 Core SM ADSS Fiber Optic Cable From China Ningbo Manufacturer
-
4/6/8/12/24/48 Core GYTS SM Direct Buried Fiber Optic Cable From Manufacturer
-
China Best Quality GYXTC8S SM 12 Core Fiber Optic Cable
-
2015 HOT Selling GYFTY Outdoor Optic Fiber Cable From China NIngbo Factory
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YUXIN | |
| Model Number | GYTA | Type | Cat 1 | |
Product Description
4/6/8/12/24/48 Core GYTA Armored Fiber Optic Cable From Zhejiang Manufacturer
Introduction:
1.The optical fiber cable has single PE sheath and single armored aluminum tape.
2.The optical fiber cable is Excellent mechanical and environmental performance.
3.The optical fiber cable special design for duct.
4.The optical fiber can choose g652d, g655, g657, 50/125um, 62.5/125um, om3, om4.
5.The cable is completed with a polyethylene (PE) sheath.
6.The optical fiber cable use Steel wire as the central strength member
7.The optical fiber cable fibers are positioned in a loose tube
8.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated Aluminum tape.
9.The optical fiber cable Between the corrugated Aluminum tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.
Profile View:
Fiber Parameters:
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3
| ||
Cable Parameters:
Items | Specifications | |
Fiber Count | 12 | |
Colored Coating Fiber | Dimension | 250±15μm |
Color | Blue,Orange,Green,Brown,Gray, Natural,Red,Black | |
Cable Subunit | Dimension | 2.3±0.1mm |
Material | PBT | |
Color | Green,Natural,Natural,Natural | |
Filler | Dimension | 2.3±0.1mm |
Material | PP | |
Color | Red | |
Central Strength Member | Dimension | 1.5mm |
Material | Steel | |
APL | Dimension | 6.4±0.1mm |
Thickness | 0.45mm | |
Outer Jacket | Dimension | 9.2±0.2mm |
Material | PE | |
Color | Black | |
Mechanical and Environmental Characteristics:
Items | Unite | Specifications |
Tension(Long Term) | N | 600 |
Tension(Short Term) | N | 1500 |
Crush(Long Term) | N/10cm | 300 |
Crush(Short Term) | N/10cm | 1000 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
Packing Information:
