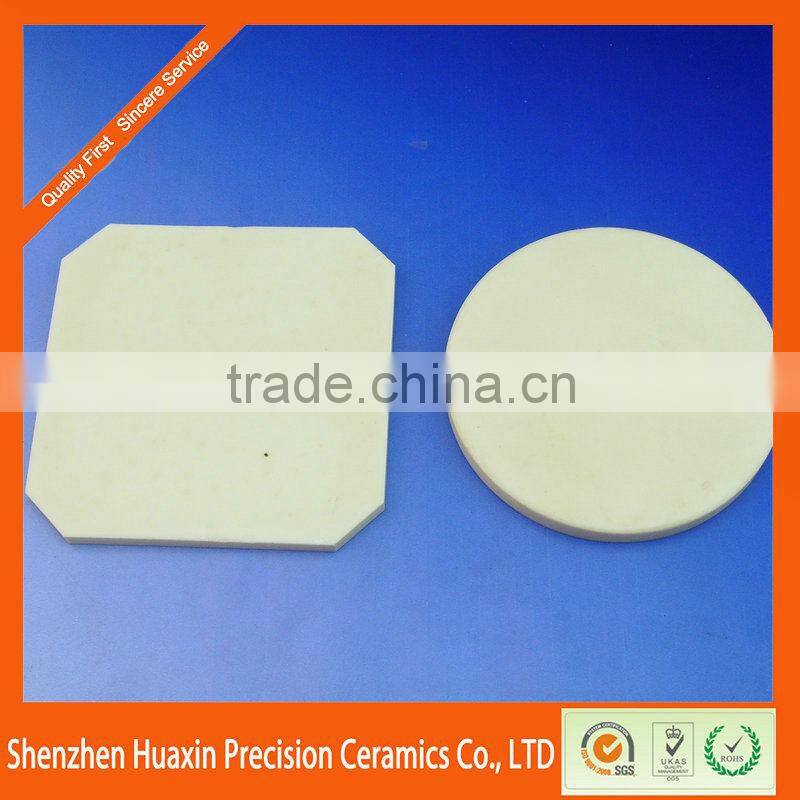

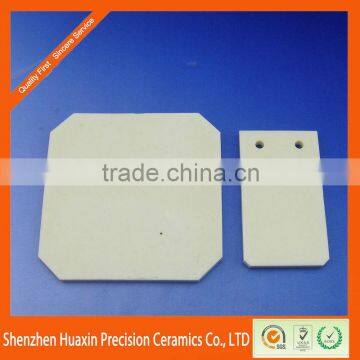

Heat Resistant Alumian Ceramic Alumina Plate
US$ 0.1 - 10
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | - | Brand Name | Hxpceramics |
Product Description
Specifications
Heat resistant alumian ceramic alumina plate
-Use for electronic
-Good insulation
-Heat resistan 95% Alumina Ceramic Beads for Flexible Ceramic Pad Heater
Product Description
Heat resistant alumian ceramic alumina plate
Features:
1.High Mechanical Strength
2.High Thermal Conductivity
3.High Spalling Resistance
4.High Softening Temperature
5.Excellent Insulativity
6.Etching Resistance
Heat resistant alumian ceramic alumina plate
Applications:
Electrical transmission and distribution
Electronic industry
Defense
Medical electronics
Auto mobile industry
Avionics
Solid Oxide Fuel Cells
White goods
High power / High temperature application
Heat resistant alumian ceramic alumina plate
We can supply the products according tocustomer's drawings, samples and performance requirement.
| Performance For Electrical Ceramic | |||||
| Item | Unit | Steatite ceramic | 95 Al2O3 | 96 Al2O3 | |
| Physical Characteristics | Heat resistance | 0C | 1100 | 1500 | 1550 |
| Bulk density | g/cm3 | 2.7 | 3.6 | 3.6 | |
| Water absorption | % | 0 | 0 | 0 | |
| Flexural strength | Mpa | 145 | 320 | 340 | |
| Mechanical Characteristics | Hardness vickers | Gpa | 5.7 | 12.2 | 13.5 |
| Elastic modulus | Gpa | 120 | 280 | 320 | |
| Poisson’s ratio | 0.21 | 0.22 | 0.23 | ||
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 7.9 | 7.1 | 7.2 |
| Thermal conductivity | w/(m.k) | 2.5 | 16 | 24 | |
| Specific Heat | *10-3J/(kg*K) | 0.75 | 0.78 | 0.78 | |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 6.2 | 9 | 9.4 |
| Dielectric loss angle | *10-4 | 18 | 15 | 5 | |
| Dielectric strength | *106V/m | 18 | 12 | 15 | |
Heat resistant alumian ceramic alumina plate
Heat resistant alumian ceramic alumina plate
