Home > Products > Electric Electrical Ceramics > Good Insulation Performace 95% Al2o3 Alumina Eletrical Ceramic Insulators Tube
Good Insulation Performace 95% Al2o3 Alumina Eletrical Ceramic Insulators Tube
- Shenzhen
- T/T L/C Credit Card PayPal
You May Like
-
High Quality Electrical Insulation Pin Al2o3 Ceramic Pin
-
High Temperature Resistance Electrical Insulation Pin Used in Electric Products
-
Alumina Ceramic Pin Electrical Insulation Pin Used in Electric Products
-
Good Insulation Performance Alumina Ceramic Pin Electrical Insulation Pin
-
Electrical Insulation Pin/thermostat Ceramic Parts
-
Good Insulation High Alumina Ceramic Electrical Insulation Pin
Product Details
| Place of Origin | Guangdong, China | Brand Name | hxpceramics | |
| Model Number | Electrical Insulation Ceramic Tube | Type | Other, Ceramic Tubes | |
| Material | Other, Alumina Ceramic |
Product Description
Specifications

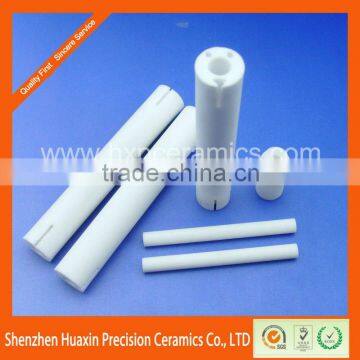

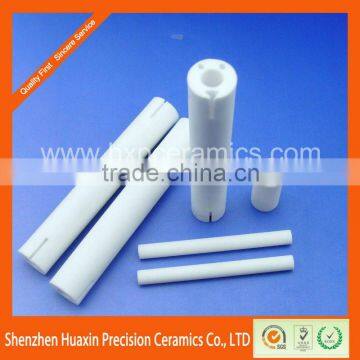

electrical insulation ceramic tube
-Mechanical strength
-Wear resistant
-High hardness
-Customized
Good Insulation Performace 95% Al2o3 Alumina Eletrical ceramic insulators tube
Features:
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) High strength
7) OEM, ODM and OBM are welcomed
Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc
| Performance | |||||
| Item | Unit | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 | |
| Physical Characteristics | Bulk density | g/cm3 | 3.6 | 3.6 | 3.9 |
| Water absorption | % | 0 | 0 | 0 | |
| Mechanical Characteristics | Flexural strength | Mpa | 320 | 340 | 360 |
| Hardness Vickers | Gpa | 12.2 | 13.5 | 15.6 | |
| Elastic modulus | Gpa | 280 | 320 | 370 | |
| Poisson’s ratio | - | 0.22 | 0.23 | 0.23 | |
| Thermal Characteristics | Linear expansion coefficient | (200C-5000C) 10-6/0C | 7.1 | 7.2 | 8 |
| Thermal conductivity | w/(m.k) | 16 | 24 | 32 | |
| Specific Heat | *10-3J/(kg*K) | 0.78 | 0.78 | 0.9 | |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9 | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 15 | 5 | 1 | |
| Dielectric strength | *106V/m | 12 | 15 | 15 | |
