slurry filter press/ hydraulic plate and frame filter press

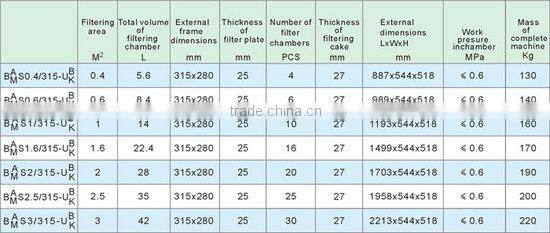

Specifications

Application:

Mine and sand washing

Municipal sludge and industrial sludge

Metallurgy

Ceramics

Chemical industry

Papermaking industry

Food industry

Pharmacy

Environmental protection

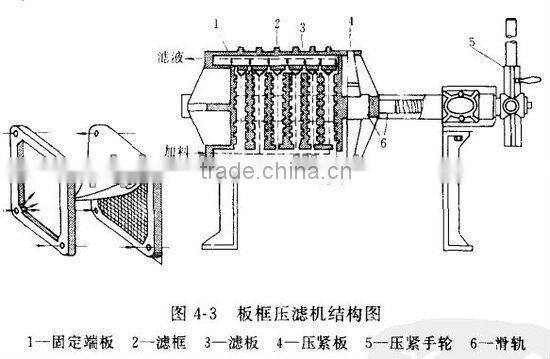

Structure:

1. Antiseptic treatment:

Antiseptic treatment can be made according to the customer’s requirements or the feed’s PH: the frame can be covered by SS, PP material, and spray-paint treatment. Spray-paint has the best preservative effect.

2.Hydraulic station:

The automatic hydraulic station is used for pressing and releasing filter plates. The electrical contract pressure gauge is available to automatically maintain pressure. The operation of automatically pushing and pulling filter plate can realized by the automatic shifting device which is driven by Integrating motor with fluid power

3 Control panel with PLC control, it is simple, safe and labor-saving.

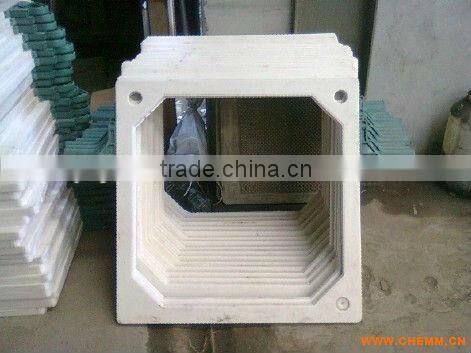

4. Pure reinforced PP filter plates resist to stronger corrosion and endure high pressure and service longer.

5. Hydraulic pistons are made by steel 45 after surface processing with feature of high hardness, anti-wearing, long life-span.

6. Motor is ABB product , and has smooth and reliable operation, low power consumption.
