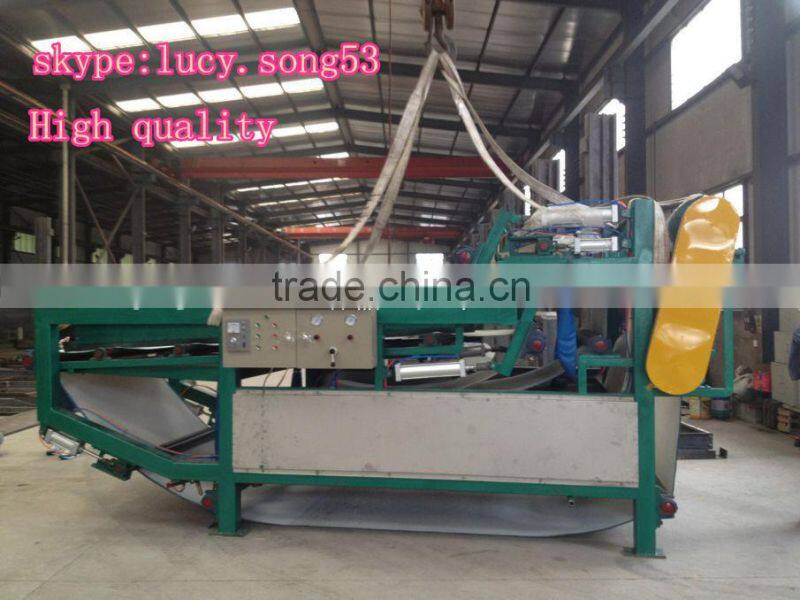

Sludge Treatment- Belt Type Filter Press

Specifications

Properties and USES
YIMEI belt type filter press is my company in the digestion and absorption of advanced foreign technology developed by the basis of new high-efficiency sludge treatment equipment, it has high efficiency, low energy consumption, dehydration, simple structure, easy maintenance, low noise, smooth operation, safe and reliable, continuous automatic production, etc. Is now widely used in petroleum, chemical, coal, metallurgy, building materials, textile, food and water environmental protection engineering solid-liquid separation.

Sludge belt filter is pressing in original belt type filter based on increased concentration, sludge inspissation machines including condensed section, dehydration section, sludge mixed reaction system, which can be directly can put the second pond sludge (99.2-99.6%) moisture content of concentrated dehydration, eliminating the traditional enrichment pool, saving a lot of investment.

Belt filter is a process of concentrated (moisture content 95-98%) material further into the effective filter cake dehydration with continuous automatic production equipment, production cost is low, equipment installation, and can change the characteristics of different mesh filters, continuous stepless speed regulation, to adapt to different kinds of material solid-liquid separation. Whole structure is reasonable, prevent water splashed outside, high accuracy, roll system installation fewer adjust deviation, extended the filters, bearings, and pneumatic components life, main transmission adopts motor stepless speed regulation, increases the speed range, smooth operation, rinse water front increased cleaning brush, improved filters rinse rinse water, reduce the effect of sludge dewatering rate, increase.

Main technology parameter:

2.1 Belt type filter press

2.1.1 filter press reducer model number: SA70 DT90S NA15  B51 d60(frequency control of motor speed)

2.1.2 reducer`s power: 1.5KW

Properties and USES
YIMEI belt type filter press is my company in the digestion and absorption of advanced foreign technology developed by the basis of new high-efficiency sludge treatment equipment, it has high efficiency, low energy consumption, dehydration, simple structure, easy maintenance, low noise, smooth operation, safe and reliable, continuous automatic production, etc. Is now widely used in petroleum, chemical, coal, metallurgy, building materials, textile, food and water environmental protection engineering solid-liquid separation.

Sludge belt filter is pressing in original belt type filter based on increased concentration, sludge inspissation machines including condensed section, dehydration section, sludge mixed reaction system, which can be directly can put the second pond sludge (99.2-99.6%) moisture content of concentrated dehydration, eliminating the traditional enrichment pool, saving a lot of investment.

Belt filter is a process of concentrated (moisture content 95-98%) material further into the effective filter cake dehydration with continuous automatic production equipment, production cost is low, equipment installation, and can change the characteristics of different mesh filters, continuous stepless speed regulation, to adapt to different kinds of material solid-liquid separation. Whole structure is reasonable, prevent water splashed outside, high accuracy, roll system installation fewer adjust deviation, extended the filters, bearings, and pneumatic components life, main transmission adopts motor stepless speed regulation, increases the speed range, smooth operation, rinse water front increased cleaning brush, improved filters rinse rinse water, reduce the effect of sludge dewatering rate, increase.

Main technology parameter:

2.1 Belt type filter press

2.1.1 filter press reducer model number: SA70 DT90S NA15  B51 d60(frequency control of motor speed)

2.1.2 reducer`s power: 1.5KW

2.1.3 treatment capacity: 3-10m³/h

2.1.4 belt speed of Presses filter machine: 5-12m/min

2.1.5 effective width of  filter belt: 1000mm

2.1.6 speed regulating style: stepless speed regulating

2.2 Belt type filter press

2.2.1 effective width of belt: 1000mm

2.2.2 filter line`s range of speed: 1.5-6.0m/min

2.2.3 speed regulation style: stepless speed regulating

2.2.4 Main transmission motor power:  1.5KW

2.2.5 treatment capacity:  10-13m³/h

2.2.6 filter cake moisture content: ≤75%

Technical data:

Why choose us

1.Long history , companying with good reputation

2. Good quality control system , Huge financial resources invested, Management System Systematized, and service personalized, which will be our goal and persistent forever.

3. Huge market overseas . Our machines have been sold all over the world . especially Africa, Europe, Asia, and North America. Clients over many countries like Australia, Sri Lanka, UK, America, Mexico, Peru, Brazil, Kenya, Tanzania, Saudi Arab, UAE, etc.

4.Equipment working site , You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby.

5. After-sales:

(1) 24 hours we are ready to explain question for you.

(2) Professional engineers supported, along with strong technical service.

(3) Excellent after-sales service.

(4) Any problem can be solved without influence products schedule of customers.
