Chamber Filter Press PP Filter Plate

Specifications

Plate frame type filter press

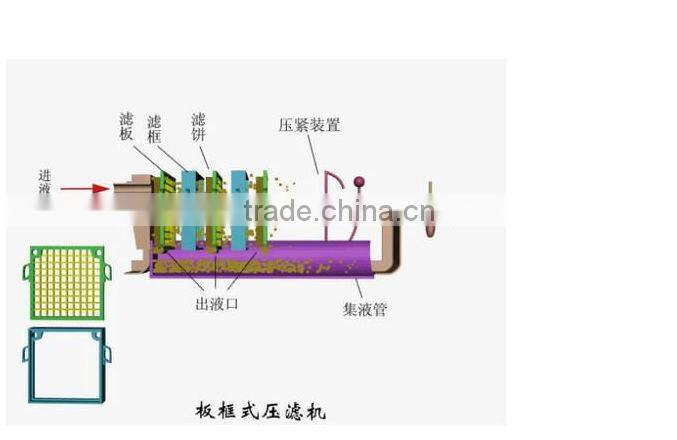

working principle:

 composed of  five parts:filter press filter board, hydraulic system, filter press box, filter board transmission system and electrical system . working principle is simpler, first by hydraulic pressure plate frame the insertion of the silt, precipitation, distribution to the middle into each filter cloth, through the filter medium and between realize firm, liquid separation of the emergence of liquid methods. At present plate frame filter is the realization of pulp solid-liquid separation of mechanical, because it airtight sex good, filtration pressure is high, easy catharsis, strong adaptability to the pulp, and thus it can advantages in water treatment, metallurgy, coal washing, food, medicine, chemical industry, etc widely application.

Feature:

1).Reinforced polypropylene filter board, filter frame adoption patent technology moulding and become, high intensity, light weight, corrosion resistance, acid and alkali resistant, avirulent insipidity;
2).Adopts hydraulic pressure, maximum pressure pressure 14MPa, and electricity contact pressure gauge automatic pressure-keeping;
3).Maximum filtering pressure for 0.5 MPa, ensure the best conditions forming filter cake, pressure filtration;
4).Simple operation, convenient maintenance, and is equipped with various safety device, ensure that the operating personnel security.

Plate frame type filter press applicable industry overview:
The machine USES extensive, applicable to all kinds of suspending liquid solid-liquid separation, polypropylene material characteristic of non-toxic, suitable for pharmaceutical, food industries health requirements, the acid and alkali resistant, corrosion resistance, especially suitable for corrosion of chemical products of filtering. Use different filter medium, to cover all the industrial field filtering.
Food: sugar, salt, alkali, monosodium glutamate, soya-bean milk, yeast, glucose powder, wheat starch, wheat flour, rice flour, skimmed milk powder, fruit juice, dehydrated vegetables, coarse sugar, pineapple juice, corn starch.

 Technical data:
