Helical Vibration Damper for Electronic Power Fittings
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Shandong Haihong | |
| Model Number | 4D-30-23.4 |
Product Description
Specifications
1. ISO 9001:20082. 20 Years Experiences
3. Direct Manufacturer
4. Long Life Time
5. Fastest Delivery
Helical Vibration Damper for electronic power fittings

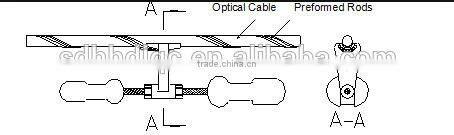

Normal Components:
Application Guide:
Calculate the installation distance, the distance between the end of the Vibration Damper and Protection Rods must be more than 70mm.
- The big Damper Weight of low frequency is close to pole or tower.
- Confirm the quantity per span length according to cable strength, span length and topography.
The normal specification is as follows:
ADSS/OPGW Cable diameter (mm) | Span Length (m) |
| |||||
|
| one (both sides) | one (each side) | two (each side) | three (each side) | ||
d<12 | ≤200 | 200-300 | 300-600 | 600-900 |
| ||
12≤d≤22 | ≤200 | 200-350 | 350-700 | 700-1000 |
| ||

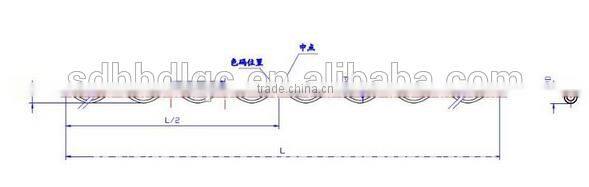

Data Sheet of Helical Vibration Damper:
Specification Model | Cable Dia. Range(mm) | Weight (Kg) | Color Code |
FYL-1508 | 7.1-8.0 | 1.5 | purple |
FYL-1509 | 8.1-9.0 | 1.5 | black |
FYL-1510 | 9.1-10.0 | 1.5 | red |
FYL-1511 | 10.1-11.0 | 1.5 | orange |
FYL-1512 | 11.1-12.0 | 1.5 | yellow |
FYL-1513 | 12.1-13.0 | 1.5 | green |
FYL-1514 | 13.1-14.0 | 1.5 | cyan |
FYL-1515 | 14.1-15.0 | 1.5 | blue |
FYL-1516 | 15.1-16.0 | 1.5 | purple |
FYL-2414 | 13.1-14.0 | 2.4 | cyan |
FYL-2415 | 14.1-15.0 | 2.4 | blue |
FYL-2416 | 15.1-16.0 | 2.4 | purple |
FYL-2417 | 16.1-17.0 | 2.4 | black |
FYL-2418 | 17.1-18.0 | 2.4 | red |
FYL-2419 | 18.1-19.0 | 2.4 | orange |
FYL-2420 | 19.1-20.0 | 2.4 | yellow |
FYL-2421 | 20.1-21.0 | 2.4 | green |
FYL-2422 | 21.1-22.0 | 2.4 | cyan |
