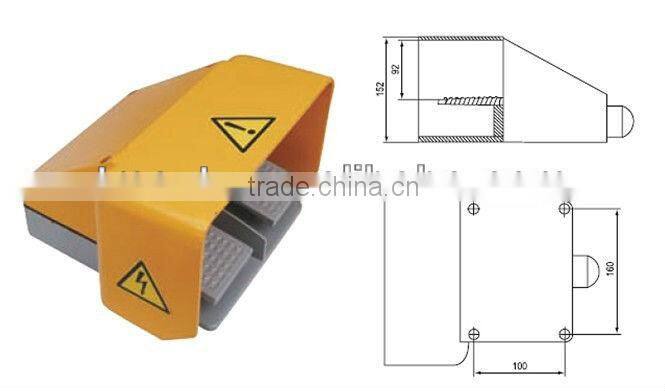

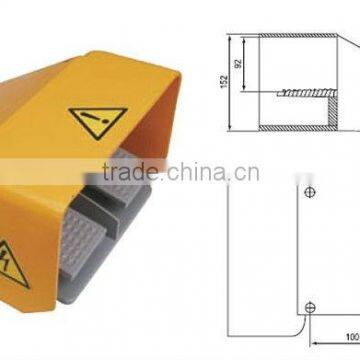

TFS-602 Double Foot Switch
Negotiable
/ Piece
10 Pieces(Min. Order)
- FOB NINGBO
- Credit Card PayPal
You May Like
-
TFS-502 Alumininum Foot Switch Foot Control Switch
-
IP66 Aluminium Double Foot Switch KACON Foot Switch 240V Double Foot Switch
-
TFS-602 Large Double Foot Switch
-
Heavy-duty Treadle Foot Switch for Press Brake Foot Control Switch FS302(TUV CCC CE RoHS
-
IP66 Waterproof Single Foot Switch Heavy Duty Foot Switch
-
TFS Foot Switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TMAZTZ | |
| Model Number | TFS-602 | Protection Level | IP66 | |
| Max. Current | 10A | Max. Voltage | 240V |
Product Description
Specifications
aluminium dobuble foot switchIP66
4 NC and 4 NO
| Product or component type | Foot switch |
| Material | Metal |
| Foot switch type | Double foot switch |
| Protective cover | With cover |
| Trigger mechanism | Without trigger mechanism |
| Contacts operation | 1 step |
| Contacts type and composition | 2 x 2 NC + 1 NO |
| Colour | Yellow |
| Positive opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Connections - terminals | Screw clamp terminal: <= 2 x 1.5 mm² with or without cable end Screw clamp terminal: <= 1 x 2.5 mm² with or without cable end |
| Cable entry | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 0.27 A, 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A 3 A, 240 V, AC-15, A300 |
| [Ui] rated insulation voltage | 500 V, degree of pollution: 3 conforming to VDE 0110 group C 500 V, degree of pollution: 3 conforming to NF C 20-040 group C 500 V, degree of pollution: 3 conforming to EN/IEC 60947-1 300 V conforming to UL 508 300 V conforming to CSA C22-2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Resistance across terminals | <= 25 mOhm conforming to NF C 93-050 method A <= 25 mOhm conforming to IEC 60255-7 category 3 |
| Short circuit protection | 10 A by cartridge fuse type gG conforming to VDE 0660-200 10 A by cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Operational power in W | 7 W DC-13, operating rate: 60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 4 W DC-13, operating rate: 60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 10 W DC-13, operating rate: 60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Ambient air temperature for operation | -25 °C to +70 °C |
| Ambient air temperature for storage | -40 °C to +70 °C |
| Vibration resistance | 15 gn (f = 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 20 gn conforming to IEC 60068-2-27 150 gn conforming to NF E 09-031 |
| Class of protection against electric shock | Class I conforming to NF C 20-030 Class I conforming to EN/IEC 61140 |
| IP degree of protection | IP669 conforming to NF C 20-010 IP66 conforming to IEC 60529 |
