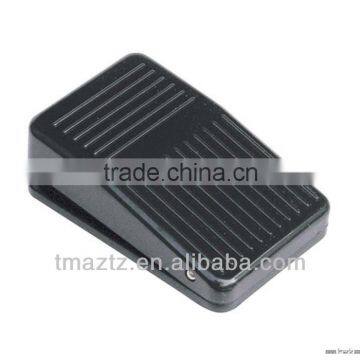

Electric Pedal Switch TFS 01

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	TMAZTZ
Model Number	TFS 01

Specialized manufacturer of Limit switch, Micro switch,foot switch with 20 years experiences

·Features

Designation	Type	Rating	Type of Switch Enclosed&contact Arrangement	Cable Type/Length	Cantact	Actuation Force	Mater ral of Rind
Standard Type Momentary Action	TFS-101	10A 250VAC	TMV-10 Micro-Switch Momentary	0.75mm2,3c/ 0.5M~3M	1A1B	1.2kg	Plastics Aluminum cast
	TFS-102	15A 250VAC	TM-1704	0.75mm2,3c/ 1.5M~2M	1A1B	1.1kg
	TFS-103	10A 250VAC	TM-10 Micro-Switch Momentary2pcs.	0.75mm2,6c/ 1M,2M	2A2B	1.2kg
	TFS-104	15A 250VAC	TM-1704x2	0.75mm2,6c/ 1M,2M	2A2B	1.1kg
Standard Tyoe Alternate Action	TFS-105	6A 250VAC	TS-105 Push butoom switch allernate action	0.75mm2,2c/ 1M,1.5M ~2M	PUSH ON PUSH OFF	2kg
Standard Tyoe Alternate Action	TFS-106	6A 250VAC	Imported Micro-switch	0.75mm2,3c/ 1M	PUSH 1A PUSH 1B	1.5kg	Plastics
Mini foot switch front end push	TFS-201	10A 250VAC	TMV-10 Micro-Switch Momentary	0.5mm2,3c/ 1M~3M	1A1B	0.7kg
Front end push with metal mounting palte	TFS-202	10A 250VAC			1A1B	0.7kg
Mini Foot Switch	TFS-203	10A 250VAC			1A1B	0.9kg	Plastics
Protective Guard Foot switch	TFS-302	15A 250VAC	TM1704	Accessory: Cable gland(No Cable)	1A1B	3.2kg	Plastics and aluminum cast
	TFS-304	15A 250VAC	TM1704x2		2A2B	3.2kg
	TFS-305	6A 250VAC	TS-105 Push butoom switch allernate action		PUSH ON PUSH OFF	3.1kg
	TFS-306	6A 250VAC	Imported Micro-switch		PUSH 1A PUSH 1B	3.5kg
Large Type	TFS-402	15A 250VAC	TM1704		1A1B	3.2kg
	TFS-404	15A 250VAC	TM1704x2		2A2B	3.2kg
	TFS-405	6A 250VAC	TS-105 Push butoom switch allernate action		PUSH ON PUSH OFF	3.1kg
	TFS-406	6A 250VAC	Imported Micro-switch		PUSH 1A PUSH 1B	3.5kg
FullShield	TFS-502	15A 250VAC	TM1704		1A1B	3kg	Aluminum cast
FullShield	TFS-602	15A 250VAC	TM1704x2		2A2B	3.2kg	Aluminum cast
