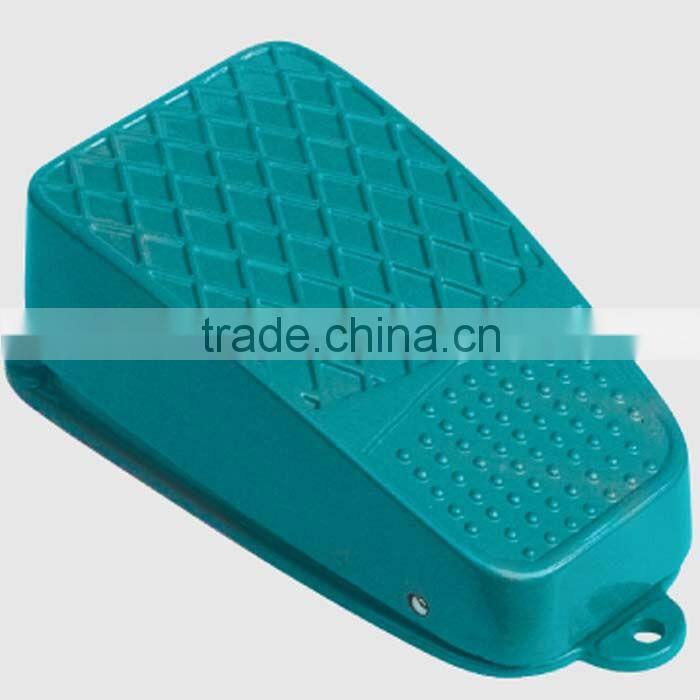

On Off Control Stomp Foot Switch

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	TMAZTZ
Model Number	TFS-3 3S

Specialized manufacturer of Limit switch, Micro switch,foot switch with 20 years experiences

·Features

Designation	Type	Rating	Type of Switch Enclosed&contact Arrangement	Cable Type/Length	Cantact	Actuation Force	Mater ral of Rind
Standard Type Momentary Action	TFS-101	10A 250VAC	TMV-10 Micro-Switch Momentary	0.75mm2,3c/ 0.5M~3M	1A1B	1.2kg	Plastics Aluminum cast
	TFS-102	15A 250VAC	TM-1704	0.75mm2,3c/ 1.5M~2M	1A1B	1.1kg
	TFS-103	10A 250VAC	TM-10 Micro-Switch Momentary2pcs.	0.75mm2,6c/ 1M,2M	2A2B	1.2kg
	TFS-104	15A 250VAC	TM-1704x2	0.75mm2,6c/ 1M,2M	2A2B	1.1kg
Standard Tyoe Alternate Action	TFS-105	6A 250VAC	TS-105 Push butoom switch allernate action	0.75mm2,2c/ 1M,1.5M ~2M	PUSH ON PUSH OFF	2kg
Standard Tyoe Alternate Action	TFS-106	6A 250VAC	Imported Micro-switch	0.75mm2,3c/ 1M	PUSH 1A PUSH 1B	1.5kg	Plastics
Mini foot switch front end push	TFS-201	10A 250VAC	TMV-10 Micro-Switch Momentary	0.5mm2,3c/ 1M~3M	1A1B	0.7kg
Front end push with metal mounting palte	TFS-202	10A 250VAC			1A1B	0.7kg
Mini Foot Switch	TFS-203	10A 250VAC			1A1B	0.9kg	Plastics
Protective Guard Foot switch	TFS-302	15A 250VAC	TM1704	Accessory: Cable gland(No Cable)	1A1B	3.2kg	Plastics and aluminum cast
	TFS-304	15A 250VAC	TM1704x2		2A2B	3.2kg
	TFS-305	6A 250VAC	TS-105 Push butoom switch allernate action		PUSH ON PUSH OFF	3.1kg
	TFS-306	6A 250VAC	Imported Micro-switch		PUSH 1A PUSH 1B	3.5kg
Large Type	TFS-402	15A 250VAC	TM1704		1A1B	3.2kg
	TFS-404	15A 250VAC	TM1704x2		2A2B	3.2kg
	TFS-405	6A 250VAC	TS-105 Push butoom switch allernate action		PUSH ON PUSH OFF	3.1kg
	TFS-406	6A 250VAC	Imported Micro-switch		PUSH 1A PUSH 1B	3.5kg
FullShield	TFS-502	15A 250VAC	TM1704		1A1B	3kg	Aluminum cast
FullShield	TFS-602	15A 250VAC	TM1704x2		2A2B	3.2kg	Aluminum cast

Yueqing Yongde Electric Co., Ltd.: Contact nameMELISSA LIN
Chat Now; Phone0086-577-62962298; AddressNo.19 Shahong Road, Baixiang Town, , Wenzhou, Zhejiang
