ML21 Flexible Straw Auto Making Machine
- SHANGHAI
You May Like
-
High Quality and High Speed ML27 Spoon Straw Auto Making Machine
-
HIGH SPEED ML24 PP FLEXIBLE STRAW AUTO MAKING MACHINE
-
GOOD QUALITY ML29A LONG FLEXIBLE STRAW AUTO MAKING MACHINE
-
ML27 Spoon Straw Auto Making Machine
-
ML22 Z-Shape Flexible Straw Auto Making Machine
-
ML28 Auto Telescope Straw Making Machine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | MARROW | |
| Model Number | ML21 |
Product Description

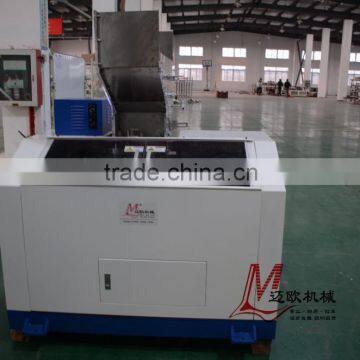

ML21 PP FLEXIBLE STRAW AUTO MAKING MACHINE
DESCRIPTION

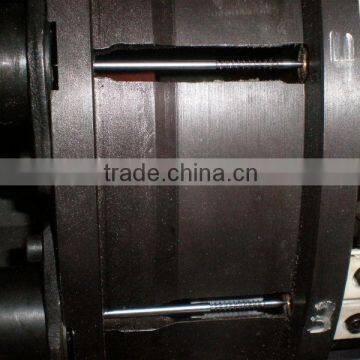

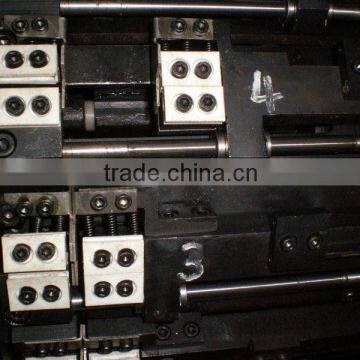

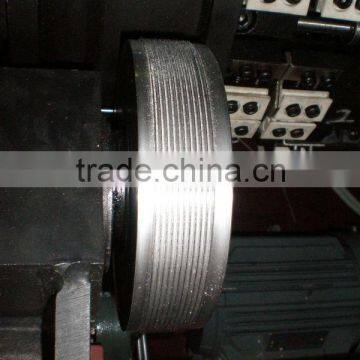

Model ML21 flexible straw making machine is a straw machine of making flexible drinking straws. The straight straws supplied in the hopper at the top of machine ,passes through 12 sets of conveyor and 12 sets of needle and 1 sets of shaping wheel,delivered to output conveyor automatically.
TECHNICAL FEATURE
1. High efficiency and high production rate,
2. Automatic product counting,
3. Automatic stop in the event of straw jamming,
4. Hopper in stainless steel is set at conveyor,one man can operate two machines,
5. Special repairing safety button ,
SPECIFICATIONS
Model | ML21-4 | ML21-5 | ML21-6 | ||
Capability | 250300pcs/min | ||||
Main motor | 1.5kW (VFD) | ||||
Specifications of straw | Diameter | φ3.8mm | φ4.8mm | φ5.8mm | |
Length of straight straw | 155245mm | 190260 mm | 190260 mm | ||
Length of flexible straw | 140235 mm | 175245 mm | 175245 mm | ||
Thickness of straw | 0.18±0.02 mm | 0.16±0.02 mm | 0.16±0.02 mm | ||
Top section length | 3050 mm | ||||
Length of flexible part | 811 mm | ||||
