ML12A TWO-COLOR CO-EXTRUDE DRINKING STRAW EXTRUDER

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	marrow	Model Number	ML12A
Voltage	380V/220V	Power(W)	11kw
Dimension(LWH)	8m1.2m1.6 m	Weight	2800 kgs
Certification	ISO,CE	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

ML12A TWO-COLOR CO-EXTRUDE DRINKING STRAW EXTRUDER

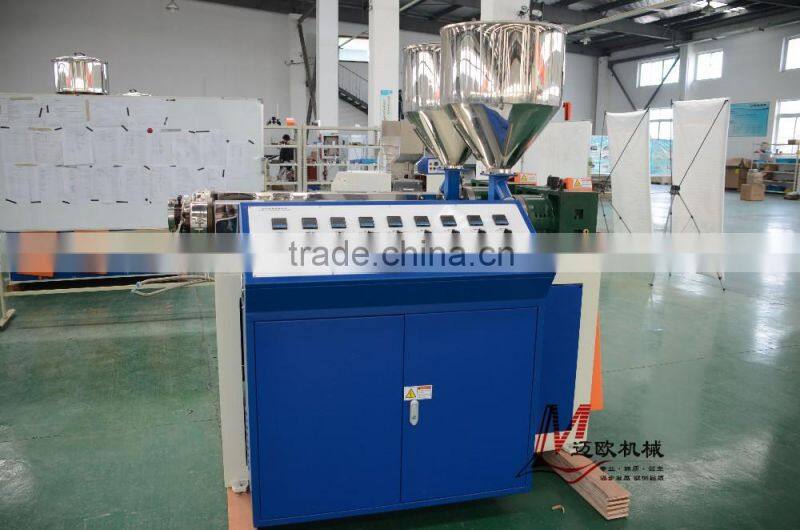

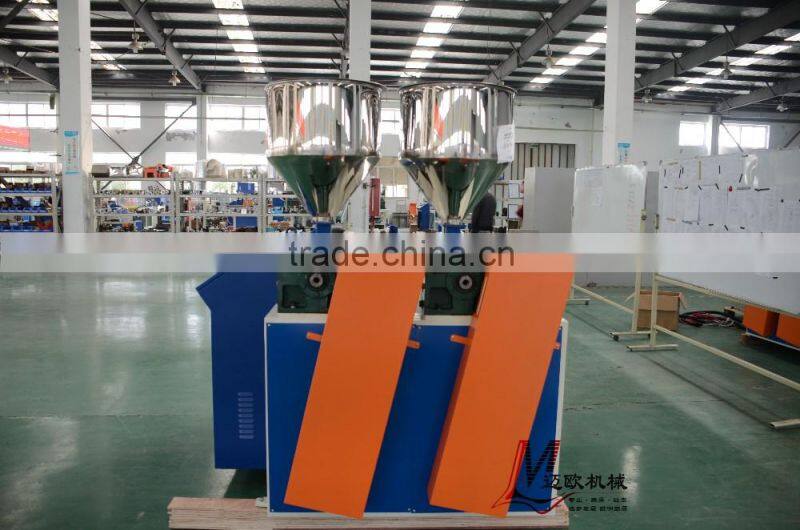

Model ML12A is a tube extrusion line, composed of two-color co-extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, air compressor, The machine can produce all kinds size of two-color drinking straw,spiral strip straw, all the machine’s controls base with the control elements ergonomically adapted to permit easy operation.

SPECIFICATIONS

Model		ML12A
Feature	Material	PP
	Color	2
	Straw diameter	φ3.0 ~φ12 mm
	thickness	0.10 ~ 0.35 mm
	Straw length	80 ~ 300 mm
	Stripes	Straight or Helical
	Capability	400 ~ 1800 pcs/min
	Extruding output range	20 ~45 kgs/hr
Extruder	Main Screw diameter	φ45 mm×2 ( BM Screw)
	Screw L/D	28 : 1
	Main driving motor	7.5 Kw×2 (VFD)
	Gearbox	ZLY112
	Automatic thermo-controller	11sets
	Heating power	14 kw
Water tank	Forming device	1 set
	Vacuum Pump motor	1.1 kw(choose)
	Water storage tank	(length)3400 mm /304 Steel stainless
	Base frame material	(304 Steel stainless)
	Blow dry device	1 set
Take up & Cutting Unit	Take up unit	1 set
	motor	0.75kW×1(VFD)
	Cutting knife unit	1 set
	motor	0.75kW×1(VFD)
	angle of port	90°/60°/45°
	Digital counter	1 set
Others	Air compressor	1.5kw(choose)
	Dimension LxWxH	8m×1.2m×1.6 m
	Machine weight	2800 kgs

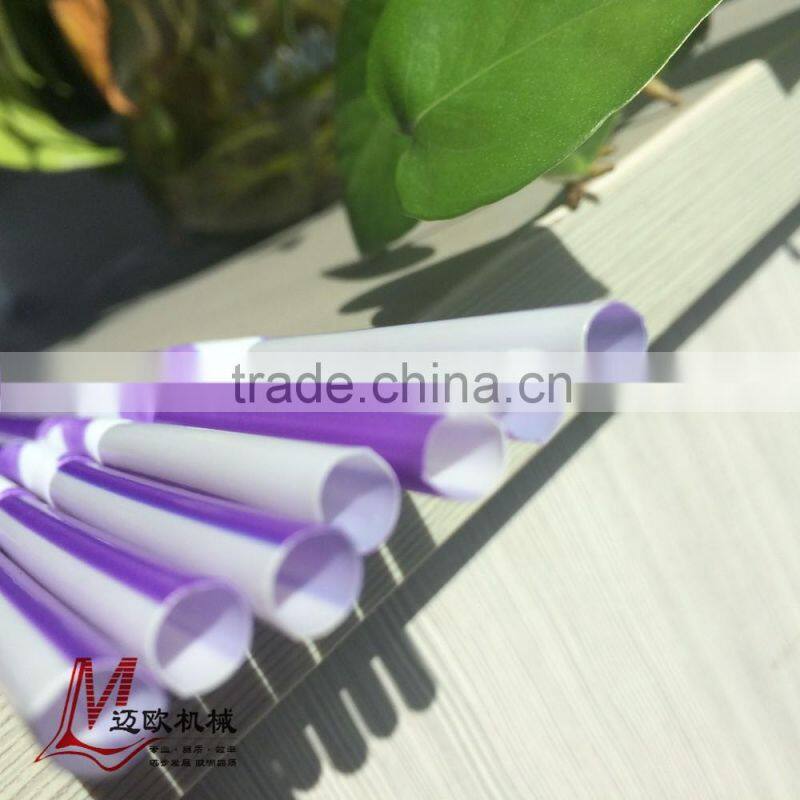

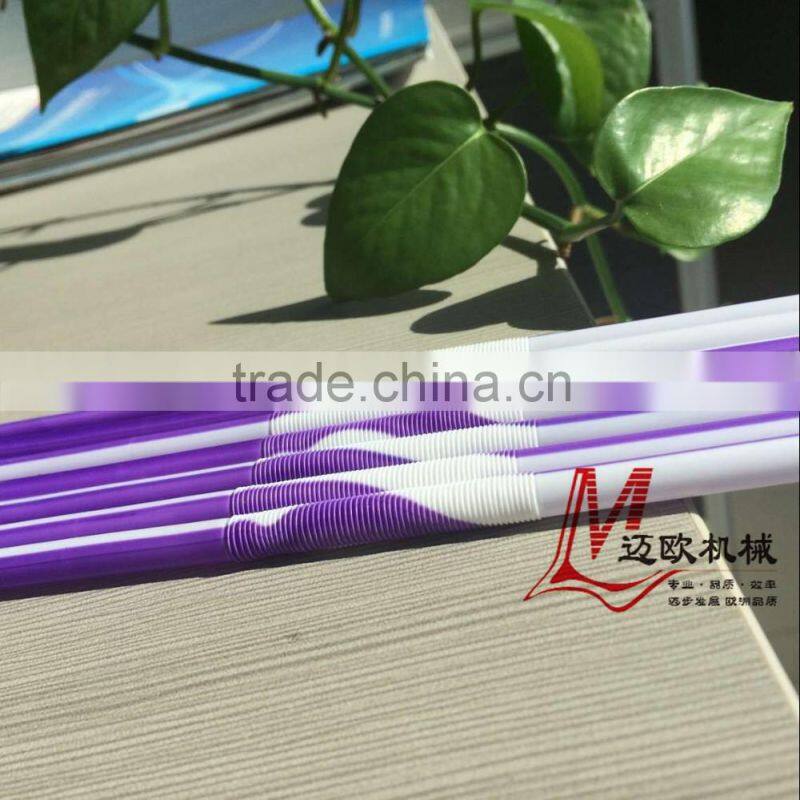

SAMPLE

LOGISTIC

Application domain

TECHNICAL FEATURE

1, The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,

2, Water bath in stainless steel can be adjusted in three planes

3, The haul-off unit can be belt or rollers, it is customizable, Fitted with double rotary cutter. Cut angle: 90°/45°, 90°/60°

4, Conveyor device(you may select if you want)
