Product Details

Place of Origin	Jiangsu, China	Brand Name	Marrow
Model Number	ML21	Voltage	220V,380V
Power(W)	1.5KW	Dimension(LWH)	1200mm*1800mm
Weight	2000kgs	Certification	ISO, CE
Warranty	1 year	After-sales Service Provided	Overseas service center available

Product Description

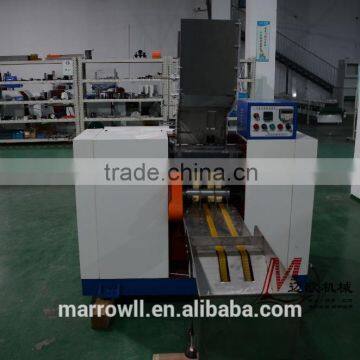

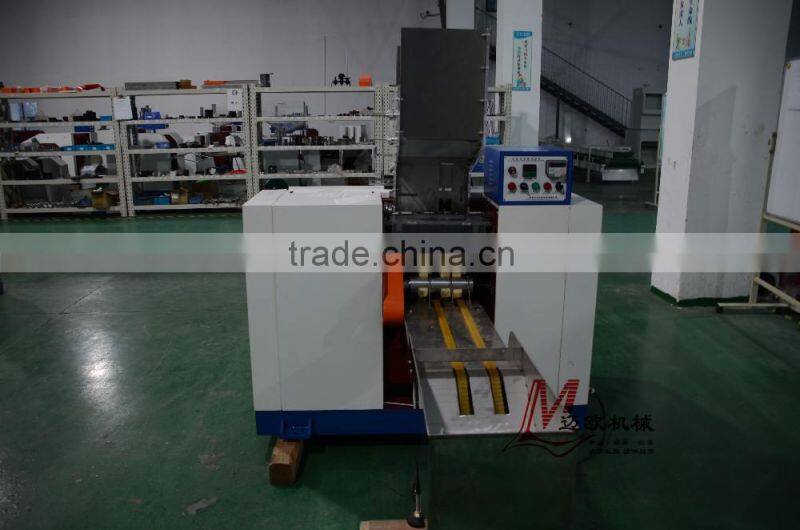

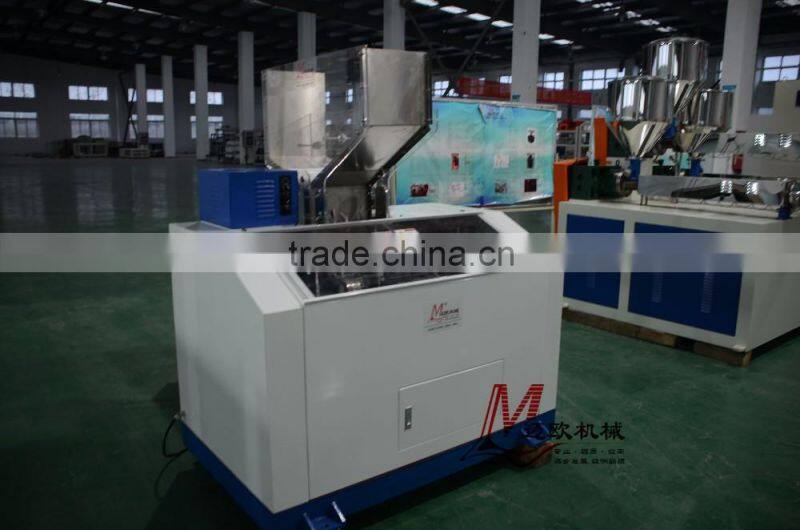

ML21 STRAW BENDING MACHINE

DESCRIPTION

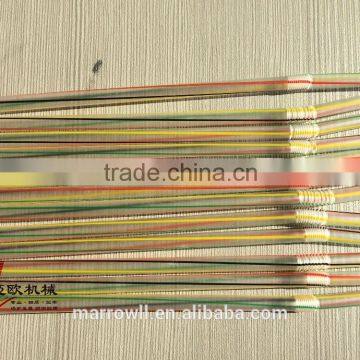

Model ML21 straw bending machine is a machine of making flexible drinking straws. The straight straws supplied in the hopper at the top of machine ,passes through 12 sets of conveyor and 12 sets of needle and 1 sets of shaping wheel,delivered to output conveyor automatically.

SPECIFICATIONS

Model		ML21-4	ML21-5	ML21-6
Capability		250∼280pcs/min
Main motor		1.5kW (VFD)
Specifications of straw	Diameter	φ3.8mm	φ4.8mm		φ5.8mm
	Length of straight straw	155∼245mm	190∼260 mm		190∼260 mm
	Length of flexible straw	140∼235 mm	175∼245 mm		175∼245 mm
	Thickness of straw	0.18±0.02 mm	0.16±0.02 mm		0.16±0.02 mm
	Top section length	30∼50 mm
	Length of flexible part	8∼11 mm

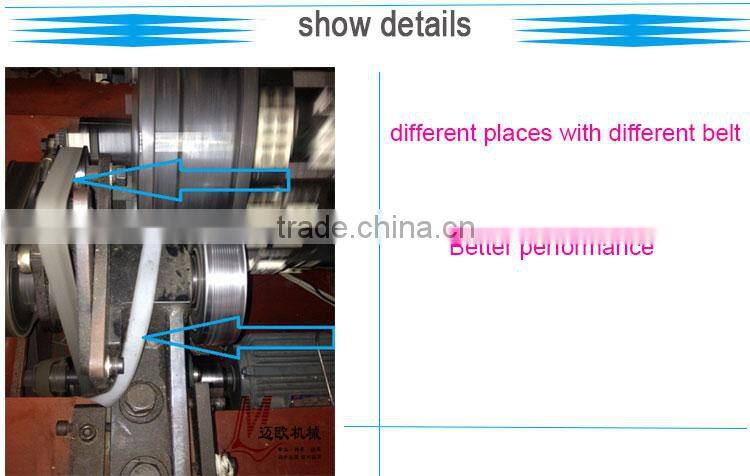

details

logistics

application fields

TECHNICAL FEATURE

1. High efficiency and high production rate,

2. Automatic product counting,

3. Automatic stop in the event of straw jamming,

4. Hopper in stainless steel is set at conveyor,one man can operate two machines,

5. Special repairing safety button ,
