ML27B HIGH SPEED SPOON STRAW AUTO MAKING MACHINE

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	Marrow
Model Number	ML27B

Product Description

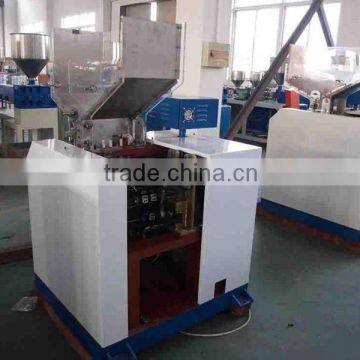

ML27B HIGH SPEED SPOON STRAW AUTO MAKING MACHINE

DESCRIPTION:

Model ML27B High Speed Spoon straw auto making machine is a special machine of making spoon drinking straws. The straight straws supplied in the hopper at the top of machine ,passes through 18 sets of conveyor and 1 sets of cutting unit and 18 sets of heating die, delivered to output conveyor automatically.

TECHNICAL FEATURE:

High efficiency and high production rate,
Automatic product counting,
Shape of spoon straw can be adjusted,
Hopper in stainless steel is set at conveyor, one man can operate two machines,

SPECIFICATIONS:

Model		ML27-6	ML27-7	ML27-8
Capability		300~400pcs/min
Main motor		2.2kW (VFD)
Power of heater die		4kW
Flotsam motor		0.37kW
Automatic counter		1set
conveyor		1set
Specifications of straw	Diameter of straw	Φ6mm	Φ7mm	Φ8mm
	Length of straight straw	197~310 mm
	Thickness of straw	0.19~0.25 mm
	Quantity of forming sfaft	18 sets
	Machine weight	1000KG
	Dimension	1300mm(W)×2000mm (L)
