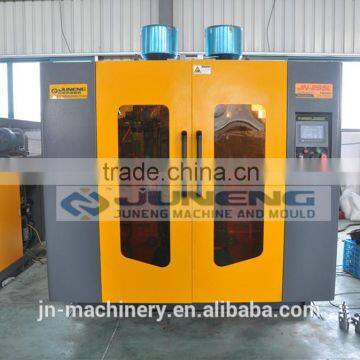

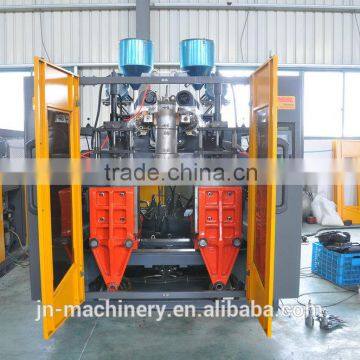

JN-2S5L Plastic PP/PE/PVC Bottle Extrusion Blow Molding Machine
- ningbo
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | JUNENG | Model Number | JN-2S5L | |
| Voltage | design as your providing | Power(W) | 25 | |
| Dimension(L*W*H) | 3.5*2.1*2.1 | Weight | 4.8 Ton | |
| Certification | ISO CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description |
| Hydraulic pattern |
| Certification:ISO and CE |
Full automatic |
| SEPICIFICATIONS FOR JN-2S5L | ||||
clamping system | Clamping force (KN)
| 60 | Mold stroke (mm) | 148~508 |
Mold thichness (mm)
| 180~290 | Size of mold (W*H)mm | 370*390 | |
Max.die diameter (mm)
| 145 | Die head capacity (Kw) | 3.5~4.3 | |
| container | max. container volume ( L)
| 5 | max.neck diameter (mm) | 170 |
max. container height (mm)
| 350 | max. container diameter (mm) | 280 | |
| blow system | Dry Cycle (pc/h)
| 600*2 | Screw Diameter (mm) | 70 |
Screw L/D ratio (L/D)
| 24~26 | Screw motor power (Kw) | 22 | |
Screw heating capacity (Kw)
| 5.04~8.2 | No. of heating zone (*Zone) | 3 | |
Output of HDPE (Kg/hr)
| 70~85 | Oil pump drive power (Kw) | 11 | |
| air system | Blowing pressure (Mpa)
| 0.6~0.8 | Air volume (m³/Min) | 0.6 |
| chiller system | Cooling water pressure ( Mpa)
| 0.3 | Water consumption (L/min) | 60 |
| machine | Size of machine (L*W*H) (m)
| 3.5*2.1*2.1 | Weight of machine (Ton) | 4.8 |
| Production Process |

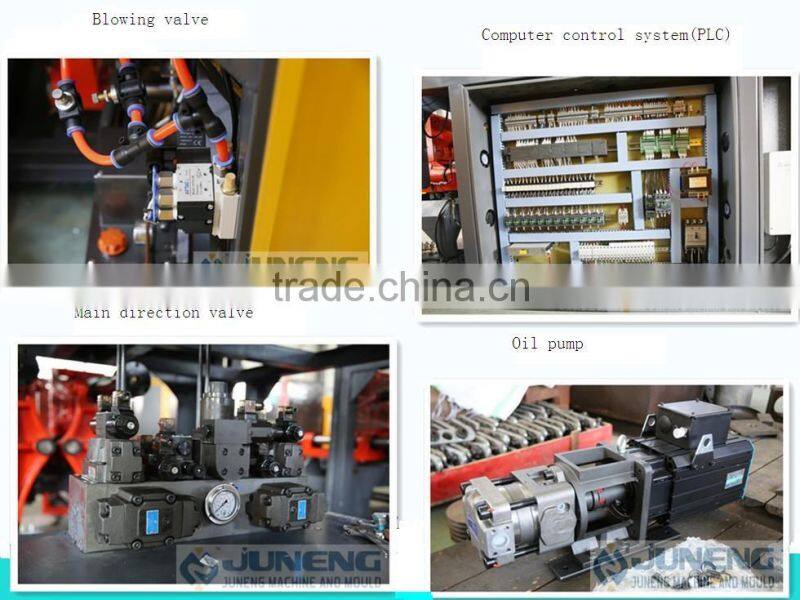

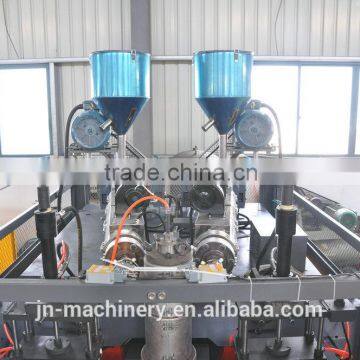

| Product details |

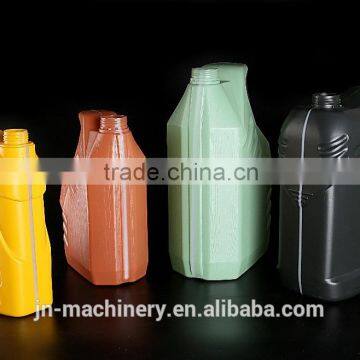

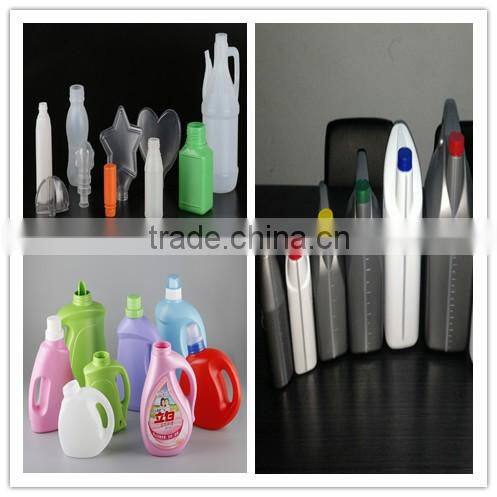

| Products show |

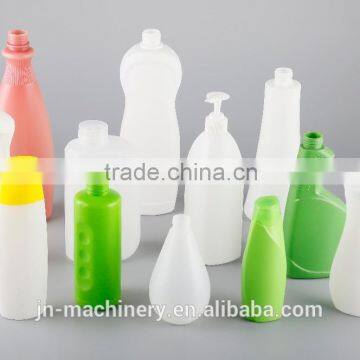

Suitable for PE ,pp,pvc bottle with any shapes for oil , CSD ( Carbonic Soft Drink), Beverage ,Mineral Water, Pesticide, Cosmetic, Jar etc containers.
Capacity:
Bottles from 40 milliliter to 5 liiter
Layers:
1 layer, 2 layer, 3 layer, 4 layer
Material:
PP,PP,PVC
Products Features:
- Bottles produced never leakage
- Save cost of production
- High productivity automatically
| Our certification |

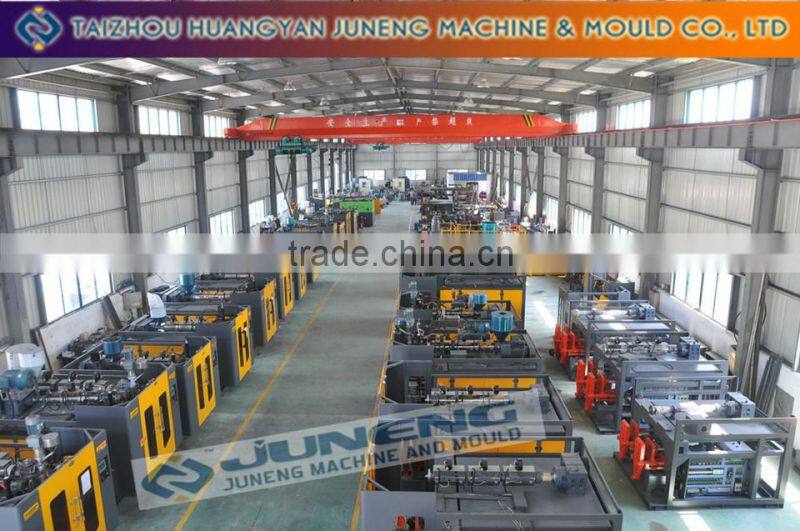

| Company profile |
TAIZHOU HUANGYAN JUNENG MACHINE MOULD CO.,LTD. located in Huanyan Zhejiang----the Town of Mold. We have more than 20 years' experience in manufacturing the productions of HDPE Extrusion Blow Molding machines, PET stretch blow molding machine and assistant bottle cap moulds and have earned a good reputation with our customers.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing Details :
Inside : film and bubble wrap
Outside : standard wooden case
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery Details : 30-50 days after payment.
| Q1: Are you a factory or trading company? |
| A: We are a factory. |
Q2:Is it OK to print my logo on led light product? |
| A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. |
| Q3:Do you offer guarantee for the products? |
| A: Yes, we offer 1 years warranty to our products. |
| Q4:How to proceed an order for machine? |
| A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. |
| 5Q: What is your terms of payment ? |
| A:30% T/T in advance ,balance before shippment. |
| 6Q: Where is your factory located? |
| A:Juneng Machine Mould Co.,Ltd. located in Huangyan,Zhejiang ---The Town of Mould.We are warmly welcome you to visit us. |
