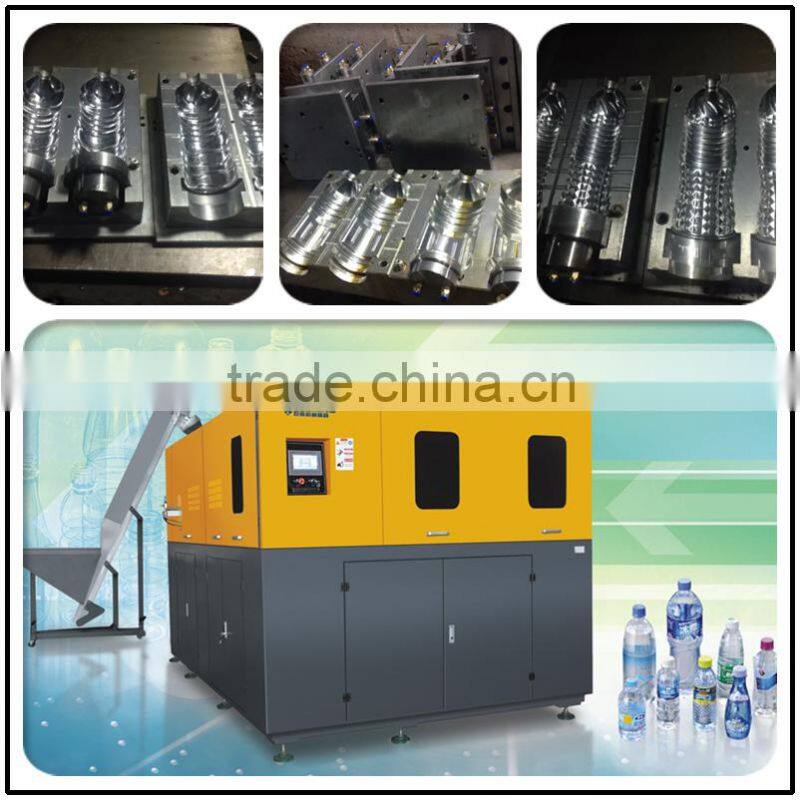

JN-2000 PET Bottle Blow Molding Machine
- ningbo china
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | JUNENG | Model Number | JN-2000 | |
| Voltage | 220V/380V | Power(W) | 30KW | |
| Dimension(L*W*H) | 3.3*1.8*1.8M | Weight | 3500kg | |
| Certification | ISO CE | Warranty | One Year Guarantee | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
company brief introduction
taizhou huangyan juneng machine mould co.,ltd loacted inhuangyan,the" hometown of mould" in china,our company introduce overseas advanced technology,formed a research and development team with many experts,engineers and technicians,to ensure the high quality products.our company specialized in designning and producting many series and sizes extrusion blow molding machines,full automatic stretch blow molding machines Plastic blow molding machine PET bottle blow molding machine
and semi automatic blow molding machines with assistant bottles moulds and cap moulds.we can offer many kinds of plastic PET production range from 20ml to 20liters.
product description:
| MODEL | UNIT | JN-2000 | JN-4000 | JN-4000L | JN-6000 | JN-6000L | JN-8000 | |
| clamping system | number of cavity | cavities | 2 | 4 | 4 | 6 | 6 | 8 |
| clamping unit | kg | 20000 | 42000 | 48000 | 56000 | 65000 | 96000 | |
| mold stroke | mm | 130 | 90 | 130 | 90 | 130 | 90 | |
| stretch stroke | mm | 320 | 250 | 340 | 250 | 320 | 250 | |
| bottem stroke | mm | 30 | 30 | 30 | 30 | 30 | 30 | |
| cavity pitch | mm | 110 | 76.2 | 120 | 76.2 | 114.3 | 76.2 | |
| heating pitch | mm | 55 | 76.2 | 55 | 76.2 | 114.3 | 76.2 | |
| number of holder | pcs | 64 | 86 | 114 | 114 | 114 | 152 | |
| container | ntainer volume | liter | 1.5 | 0.6 | 2 | 0.6 | 1.5 | 0.65 |
| max.neck diameter | mm | 32/38 | 38 | 38 | 38 | 38 | 38 | |
| max.preform height | mm | 140 | 140 | 140 | 100 | 140 | 100 | |
| ntainer diameter | mm | 95 | 110 | 110 | 65 | 95 | 65 | |
| ntainer height | mm | 320 | 250 | 340 | 250 | 320 | 250 | |
| theoretical output | B.P.H | 220 | 4000 | 4000 | 6000 | 6000 | 8000 | |
| electrical system | heating oven | units | 2*12 | 8*7 | 4*12 | 8*7 | 8*10 | 12*7 |
| number of lamp | pcs | 24 | 56 | 48 | 56 | 80 | 84 | |
| heating power | kw | 28.8 | 67.2 | 57.6 | 67.2 | 92 | 100.8 | |
| install power | kw | 32/38 | 75 | 65 | 75 | 105 | 110 | |
| voltage | voltage | 220/380v,3phase | ||||||
| air system | operating pressure | kg/cm² | 7 | 7 | 7 | 7 | 7 | 7 |
| blowing pressure | mpa | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
| high pressure air | L/min | 2000 | 4200 | 4200 | 5600 | 5600 | 8000 | |
| power | kw | 22 | 44 | 44 | 66 | 88 | 88 | |
| chiller system | temperature | ℃ | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 | 10-15 |
| pressure | mpa | 0.3-0.5 | 0.3-0.5 | 0.3-0.5 | 0.4 | 0.4 | 0.3-0.5 | |
| flow rate | L/min | 40 | 80 | 80 | 80 | 80 | 100 | |
| heating power | HP | 5 | 5 | 5 | 5 | 5 | 5 | |
| machine | machine size(L*W*H) | M | 3.3*1.8*1.8 | 4.3*2.2*2.0 | 4.8*2.2*2.0 | 4.8*2.2*2.2 | 5.6*2.25*2.0 | 6.2*2.25*2.0 |
| machineweight | kgs | 3500 | 5000 | 5800 | 5800 | 6500 | 7000 | |
Components resources:
Components | Brand,Origin |
PLC controller | Delta,Taiwan |
Touch screen | Wenview, Taiwan |
Cylinder | SMC, Japan |
Filter | TPC, Korea |
Magnet valve | TPC, Korea |
Photoelectric switch | OMRON,Japan |
Contactor | Schneider,France |
Proximity switch | SICK ,German |
Sensor | OMRON,Japan |
Switch power | MEANWELL,Taiwan |
Frequency converter | Mitsubishi,Japan |
Main Servo motor | Mitsubishi 1.5kw,JAPAN |
Feeding Servo Motor | Mitsubishi 0.4kw,JAPAN |
oil valve | Li Shile |
Clamping | Hydraulic clamping |
Seal | Pipe fixed |

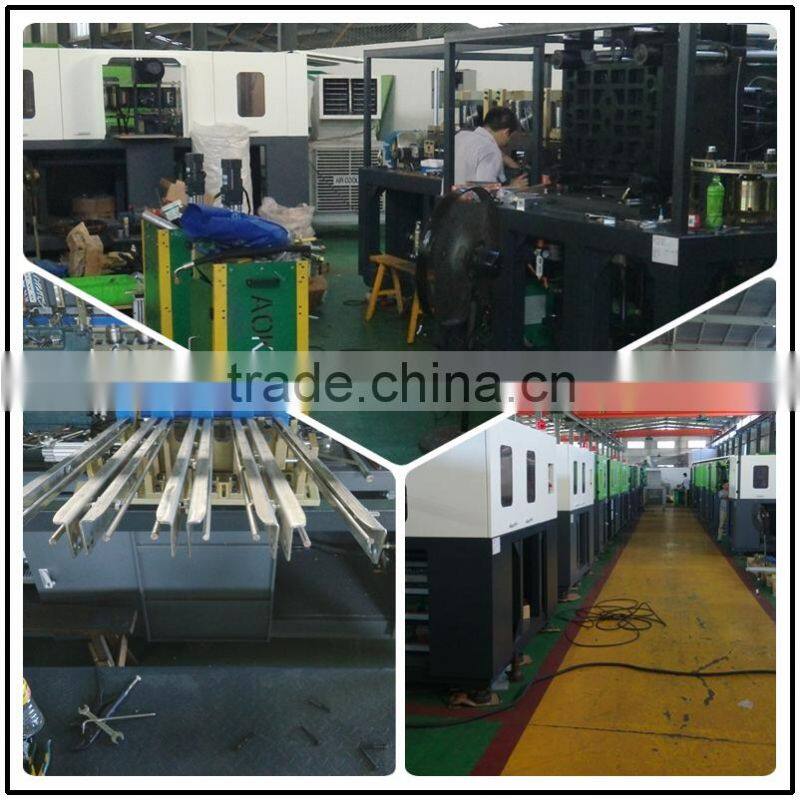

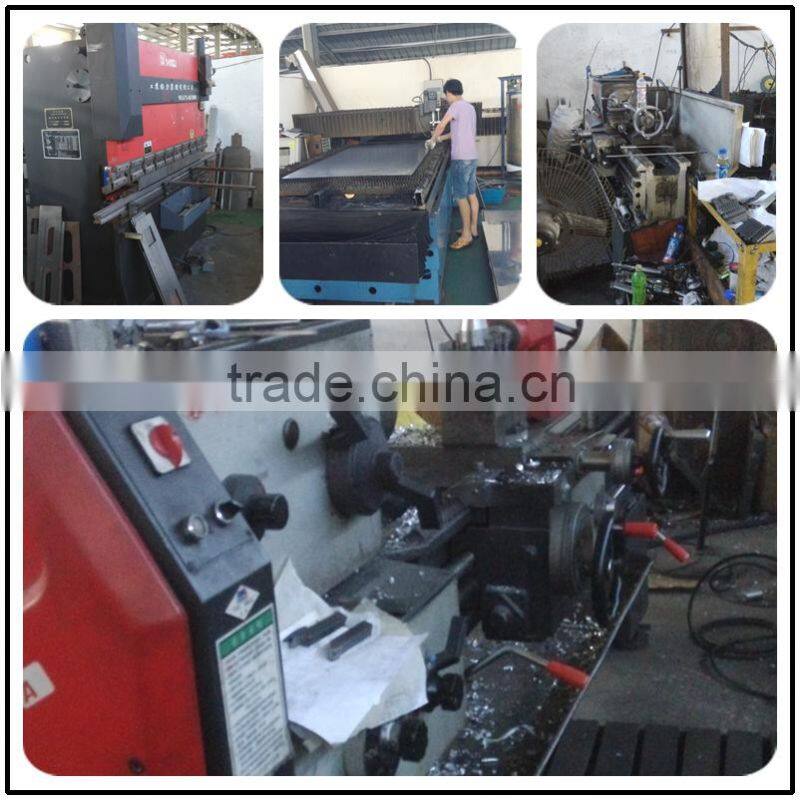

CNC center:
we have own CNC center to produce the spare parts by ourself to make sure the high level quality to mating our machine.stretch blow molding machine
REMARKS:
1.TERMS OF PAYMENT: 30% DEPOSIT BY T/T, AND THE REST PAYMENT SHOULD BE PAID BEFORE DELIVERY
2.PACKING:STANDARD EXPORT PACKING
3.LOADING PORT: NINGBO,CHINA
4.PARTIAL SHIPMENT IS NOT ALLOWED
5.INSURANCE EFFECTED BY BUYER
6.POWER: 3 PHASE,380V,60HZ
PAYMENT ROUTE
Beneficiary bank’s Name: AGRICULTURAL BANK OF CHINA, ZHEJIANG BRANCH,55 CHANGQING STREET, HANGZHOU ,CHINA
SWIFT: ABOCCNBJ110
Beneficiary’s Name:TAIZHOU CITY LIANHUA IMP& EXP.CO., LTD
Beneficiary’s Account: 19916314040000083
Beneficiary’s Address: HUANGYAN, TAIZHOU, ZHEJIANG, CHINA
contact person:
