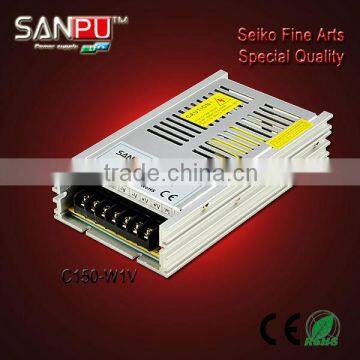

china manufature 150w 220v high voltage Electric Switch
- shenzhen
- T/T Credit Card
You May Like
-
china manufature 150w 220v ultra-thin transformer
-
china manufature 150w 220v 5v transformer
-
quality is similar to meanwell 150w 12v 24v ultra-thin led driver
-
100-240VAC 100w 24v power source of china manufacturer,supplier
-
china manufature and supplier with CE ROHS 2 year warranty 150w 100-240v 24v tv lcd power supply
-
25W 24V Hi-Q Led Power supply for strip light manufacture
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sanpu | |
| Model Number | C150-W1V24v | Output Power | 101 - 200W | |
| Output Type | Single | Input Voltage | Other, 85-264v | |
| Output Voltage | 24V | Output Frequency | 47-63HZ | |
| Output Current | 0-6.5A |
Product Description
Specifications
Electric Switch1.resonable price and high reliability
2.Installed with EMI filter,minimum wave
3.two years warranty
Electric Switch
features:
1.international AC input range
2.high efficiency, low working temperature
ft- start circuit, limiting AC surge current soft-start
4.short circuit, overload, over voltage protected
5.Built-in EMI filter, low ripple noise
6.low cost, high reliability
7:Constant voltage output
8:Output current accuracy:5%
9:Power efficiency:>85%
10:Power factor (PF):>0.95
11:Ambient humidity:80% non-condensing
12:Mean Time Between Failure:>30000h
13:Suitable for outdoor LED street lights, flood lights and ect
14:2 years warrantytectio
specification:
Model | C150-W1V12 | C150-W1V24 | |
output | DC voltage | 12V | 24V |
Voltage tolerance | ±1% | ±1% | |
Current range | 0~12.5A | 0~6.5A | |
Rated power | 150W | 150W | |
DC voltage ADJ.range | ±10% | ±10% | |
input | Voltage range | 85~132VAC 170~264VAC (selected by switch) | |
frequency | 47~63HZ | ||
AC current | 3.2A/110V,1.6A/230VAC | ||
efficiency | 84% | 85% | |
Inrush current | Cold start current 20A/115V,40A/230V | ||
Leakage current | < 2.5mA/240VAC | ||
protection | overload | Rated output power105%~135% start over load protection | |
protection type:hiccup mode, recovery after restart power | |||
over-voltage | 115~135%cut off the output ,auto-recovery | ||
----- | ----- | ||
----- | |||
environment | Working temp,humidity | -10°C~+60°C,20%~90%RH | |
Storagetemp,humidity | -20°C~+85°C,10%~95%RH non-condensing | ||
Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||
safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||
Fitstandard | Safety standard | Fit UL1012 | |
EMC standard | Comply with EN55022,UL60950 | ||
| Weight/packing/size | 0.39kg/50pcs/19.5kg/ 158*88*34MM | |
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation | ||
picture exhibition:
Service:
1. Your inquiry related to our products or prices will be replied in 24hours;
2. Well-trained and experienced staffs to answer all your enquires in fluent English;
3. Any your customized demand we can help you to design and put into product;
4. As professional led power supply Manufacturer, we must give you the lowest price with high quality.
