shenzhen sanpu hot selling rain-proof ip63 250w rack mount 12v power supply ac 220v dc12v 24v

FOB Price

USD $11.5 - $18 / Piece

10 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

rack mount 12v power supply
1. AC input power suitable for the world
tections:short circuit/over load/over voltage

rack mount 12v power supply

Specification:

Model		FX250-H1V	FX250-H1V	FX250-H1V	FX250-H1V	FX250-H1V
output	DC voltage	12V	15V	24V	27V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%	±1%
	Rated current	20A	16A	10A	9A	5.2A
	Current range	0~20A	0~16A	0~10A	0~9A	0~5.2A
	Rated power	250W	250W	250W	250W	250W
	DC voltage ADJ.range	-9%~+10%	±10%	±10%	±10%	±10%
input	Voltage range	170~264VAC(selected by switch)
	frequency	47~63HZ
	AC current	2.5A/230VAC
	efficiency	80%	83%	84%	85%	86%
	Inrush current	Cold start current50A/230V
	Leakage current	< 3.5mA/240VAC
protection	overload	Rated output power105%~135% start over load protection
		protection type:cutoff output,auto-recovery
	over -voltage protection	-----
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Comply with EN55022,UL60950
	Weight/packing/size	1.3kg/20pcs/26kg/ 2459252.5mm
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation

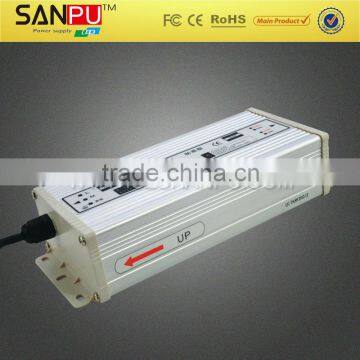

picture show:

promise:

1. Your inquiry related to our products or prices will be replied in 24hours;

2. Well-trained and experienced staffs to answer all your enquires in fluent English;

3. Any your customized demand we can help you to design and put into product;

4. As professional led power supply Manufacturer, we must give you the lowest price with high quality.
