SANPU single output standard power supply 5v 10a led driver manufacturers,suppliers

FOB Price

USD $4.8 - $10.5 / Piece

200 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

power supply 5v 10a
1.Reasonble price,high reliability
2.small-volume,high efficiency
3.built-in EMI fiter with tiny ripple

power supply 5v 10a

1.specification:

Model		PS50-W1V	PS50-W1V
output	DC voltage	5V	12V
	Voltage tolerance	±2%	±1%
	Rated current	10A	4.2A
	Current range	0~10A	0~4.2A
	Rated power	50W	50W
	DC voltage ADJ.range	-9%~+10%	±10%
input	Voltage range	85~264VAC(selected by switch)
	frequency	47~63HZ
	AC current	1.8A/110VAC0.9A/230VAC
	efficiency	75%	80%
	Inrush current	Cold start current36A/230V
	Leakage current	< 1mA/240VAC
protection	overload	Rated output power105%~135% , auto-recovery
		protection type:cutoff output,auto-recovery
	over -voltage protection	-----
		-----
environment	Working temp,humidity	-10°C~+60°C,20%~90%RH
	Storagetemp,humidity	-20°C~+85°C,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolated resistance	I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
Fitstandard	Safety standard	Fit UL1012
	EMC standard	Comply with EN55022,UL60950
	Weight/packing/size	0.24kg/80pcs/19.2kg/ 1187836mm
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation

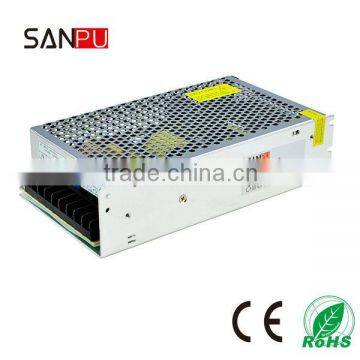

2.picture show:

mise:

1. Your inquiry related to our products or prices will be replied in 24hours;

2. Well-trained and experienced staffs to answer all your enquires in fluent English;

3. Any your customized demand we can help you to design and put into product;

4. As professional led power supply Manufacturer, we must give you the lowest price with high quality.
