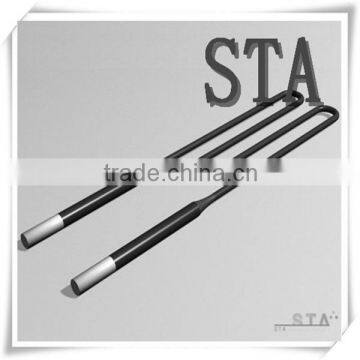

Molybdenum disilicide heating elementMosi2 heatingelement made in China immersion heater for electric

Specification

1. heating elements (MoSi2)

2. U/UL/W/WL/irregular type Mosi2 heating elements

3. Diameter:3/6,4/9,6/12,9/18mm

4. Shape:I, U,W,UL,WL, irregular

MoSi2 electric heating element can usually make use of furnace temperature from 1300C to 1800C. It is extensively used in the industries of metallurgy,glass, ceramic refractory, crystal electronic device, industrial furnace manufacture, etc.. It is an essential ideal element when the products are sintering in the high temperature.

Technical data for electric heating element

characteristic for  electric heating element

MoSi2 heating element is a resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1800C during oxidizing atmosphere. According to your request, our company can produce the products of Pole, "U", "W" and "U"-right angle shapes, etc.

When you place an order of the U Shape Mosi2 Heating Elements, please give following information:

Material Grade: 1700/1800

C: Hot Zone Diameter

D: Cold Zone Diameter

Lu:Cold Zone Length

Le: Hot Zone Length

A:Shank Spacing

Order Sample of the U Shape Mosi2 Heating Elements

U Shape: Material Grade: 1800,
c=3mm,d=6mm,Le=140mm,
LU=125mm,A=25mm
Specify As:3/6×140×125×25

 STA is a leading manufacturer for laboratory high temperature muffle furnace, tube furnace, vacuum furnace, atmosphere furnace, dental singtering furnace, bottom loading furnace, bogie hearth furnace, mosi2 heating elements, sic heating elements , alumina ceramic tube pipe, refractory material, ceramic fiber board blanket.

Our advanced and professional technology, complete production lines, experienced staff and strict corporate system ensure our products quality. We pride ourselves on quality products, service and pricing, and believe that the three aspects are equally important to ensure the long-term success of overseas purchasing program.

• Your inquiry related to our products or prices will be replied within 24hours.

• Well-trained and experienced staffs to answer all your inquiries in fluent English.

• All our products have 1-year warranties

• Offering the support to solve the problem in the application or selling period.

• Competitive prices based on same quality

• Guarantee samples quality same as mass production quality

STA protect your irreplaceable data and valuable equipment with the most dependable and popular line of uninterruptible industrial products.

STA distinguishes itself from other industrial company by the extraordinary results it delivers. Our ability to routinely produce these results derives from our unique combination of the following advantages:

1. Unmatched experience and expertise.

2. Proprietary benchmarks, best-practice methodologies, and work processes

3. Highly flexible and responsive team deployment.

 1.You give us an inquiry or leave a message.

 2.We will quote accordig to the type,diameter,hot zone,cold zone,length,resistance,temperature.

 3.Negotiation payment after all details confirmed.

 4.We will send the goods to you timely.

 5.If you need special and customized design,the delivery time will be based on the quantity and

    specifications according to your requirement.

 6.Devery time:7 days after your payment.

 7.After-sale service: We will take responsibility of any problem caused by manufacturer, offer 100%

   satisfied  guarantee.

Q:Why choose STA?

A:35 years experience.Point to point service.Reasonable price.Multiple selections.

Q:Which payment terms you will accept?

A: T/T, West Union,Moneygram or Other.

Q: What is the delivery time?

A: For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Others the delivery time is from 15 days to 20 days according to different products request.

Q: What logistic shipping ways you can send the products?

A: We can send goods out by sea, by air or by express according to per customer's requirement.

Q: What about your after-sale service?

A: Our warranty time is one year for defects in materials or workmanship. During this period, we will replace the bad components free of charge  for customers,but this warranty does not cover consumables and failures

because of abusing, misusing, accident or unauthorized alteration or repairing. Heating element is not included inside.
