high temperature 1800C lab furnace MoSi2 molybdenum disilicide heating elements

   high temperature 1800C lab furnace MoSi2 molybdenum disilicide heating elements

1.MoSi2 electric heating elements is a kind of resistance heating element made from Molybdenum Disilicide. It can be exerted under the high temperature of the oxidated atmosphere. MoSi2 elements have the unique function of high temperature anti-oxidation. Under the oxidated atmosphere, the maximum temperature of MoSi2 elements is 1800°C. It can be made into various types, including U-type, W-type, right-angle as well as circular type.

 The general temperature of MoSi2 heating rods is from 1300°C to 1800°C, which is universally applied to the field of  metallurgy, glass, ceramics, magnetic matrials, refractory materials, crystals, electron devices and kiln etc. It is the ideal heating element of high temperature anealing.

2.Technical Data of MoSi2 electric heating elements:

3.The influence of operation temperature on the heater surface in a different atmosphere

4. MoSi2 heating elements physics and chemistry characters:

STA MoSi2 elements are made to industry standard established resistance values, dimensions and geometries, and therefore are interchangeable with other manufacturers of molybdenum disilicide elements.

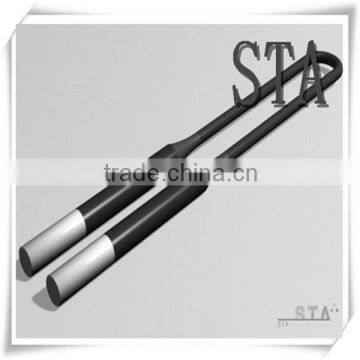

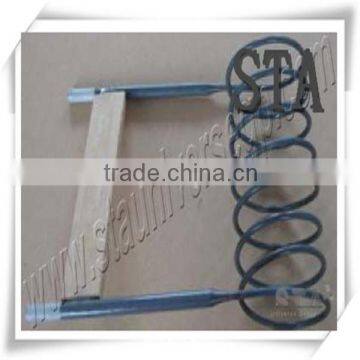

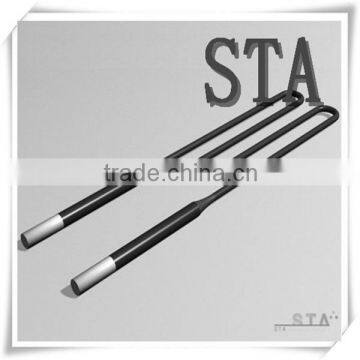

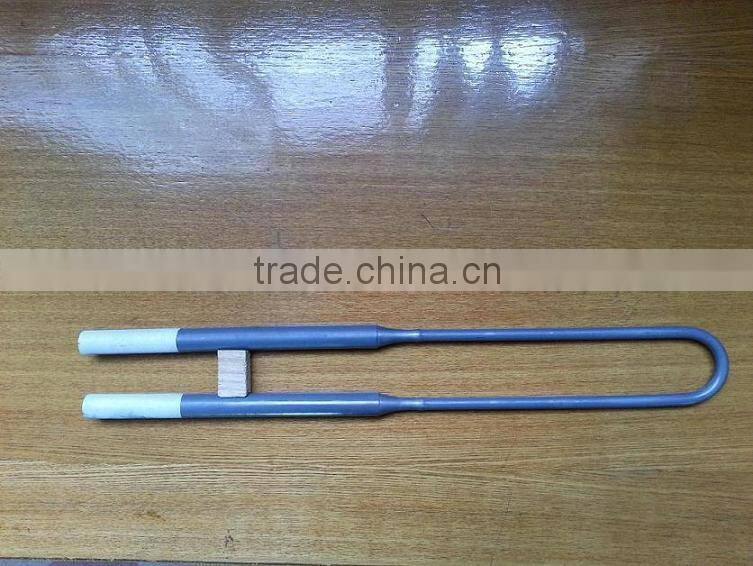

STA MoSi2 elements are graded in two maximum temperature ranges of 1700°C (3090°F) and 1800°C (3270°F). Elements are available in many shapes and forms (see examples shown below). Specifically, we offer the following MoSi2 styles: “U-shaped” (most common), “W-shaped”, and “Straight-shaped”, with or without right angle or oblique angle bends.

Examples of typical MoSi2 element configurations.

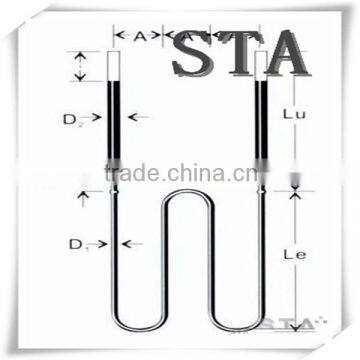

d=6mm, c=12mm, Le=200mm, Lu=180mm, a=30mm

Please specify as: dia6/12x200x180x30mm (dia d/cxLexLuxa mm)

d = the diameter of hot zone

c = the diameter of cold zone

Le = the length of hot zone

Lu = the length of cold zone

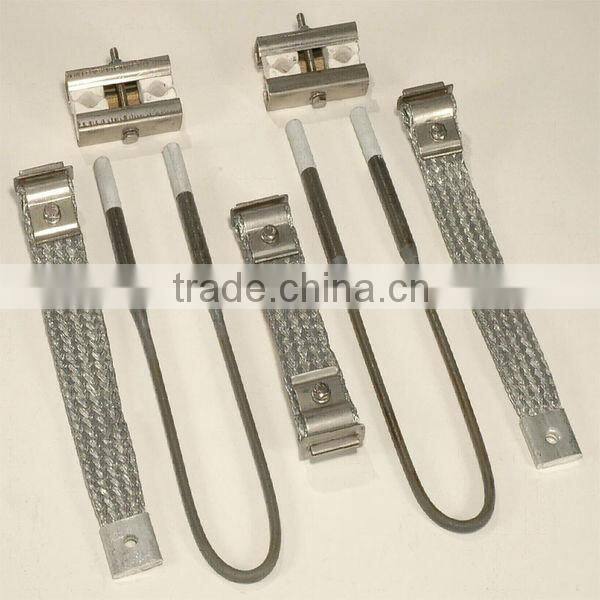

MoSi2 Element Accessories

a full range of accessories for mounting and wiring MoSi2 elements including:

• support clamps
• braided aluminum straps
• power buss bars

Shipping term: DHL/FEDEX/TNT/UPS

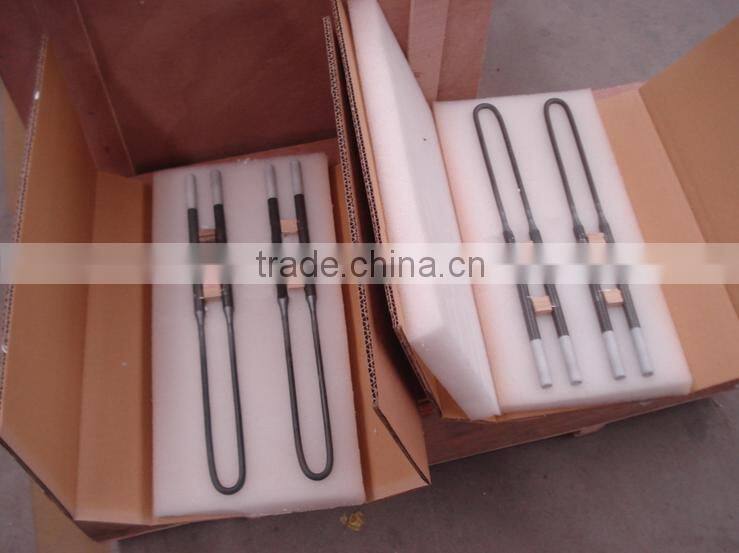

Packaging:

STA UNIVERSE GROUP CO.,LTD is a profession manufactory in China for years.  We specialize in muffle furance, ceramic fiber products, refractory and related goods. High quality products with competitive price are popular to customer.  With good after-sales service, our company have a highest reputation at overseas.

Founded is 2001, The universe group is dedicating to innovation and creating a world brand from now on. Original a small collective plant on the verge of workshop, it has now grown into an international group which has more than 72,00 employees around the globe and realizes a turnover of 2.7 billion yuan in 2010.

 Our Service

1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. All our products have 1-year warranty.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.

7. Check quality of items one by one

8. Provide packing photos and tracking number

9. tracking parcel for you.

We accept the trial order, so you can test quality firstly.

2.Can you offer best price for us to beat competitors?

Of course, we can update price to support your business.

3.How long will it take to complete my order?

For the stock items, we can arrange the shippment within 2 days after paymment is received. For the customized items,lead time is about 25 days.

4.What's your after-sales service?

Furances is 2 years warranty, other products is 3 months.

5. Can you send goods to our shipping agent in China?

YES, We can. And delivery time is within 3 days.

6. I will go to China for Shanghai international exhibition of refractories and industrial ceramics, And can we visit your factory?

We are so happy to get your visit.
