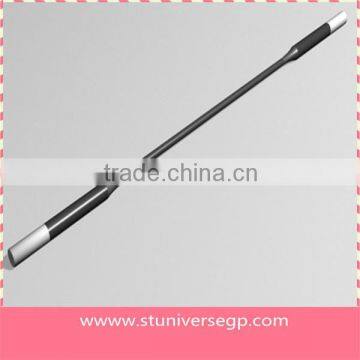

STA 1700 1800 1900 Grade Rod type heater Molybdenum disilicide MoSi2 heating elements

STA MoSi2 Heater Molybdenum Disilicide Heating Elements can quickly form a thin and adhesive anti-oxidizing layer of quartz glass (SiO2), under the high temperature oxidizing condition. If the protective layer was damaged, the element can reform a new one, so  MoSi2 Heater Molybdenum Disilicide Heating Elements have a very good anti-oxidation properties, it also means that the heating element can be used on operation for a much longer time than the traditional one.

MoSi2 Heater Molybdenum Disilicide Heating Elements  is used in the high temperature under oxidizing atmosphere. It will form the SiO2 film which can keep the element from being melted. When the temperature of element is more than 1700°C,the  MoSi2 Heater Molybdenum Disilicide Heating Elements must not be used in the temperature between 400°C and 700°C for a long time; otherwise the element will be cremated under the strong oxidizing function in the low temperature.

Molybdenum disilicide heater MoSi2 heating element :

1) Main type :U, W ,UL, WL, Rod . Material grade :M1700,M1800,M1900.

2) Standard dimension (mm):3/6,4/9,6/12,7/14,9/18,12/24.

Physical  property:

Recommend Surface load Molybdenum disilicide heater MoSi2 heating element :

The influence of operation temperature on the heater surface in a different atmosphere

 The dimension list :

Typical application :

They can be widely used in such applications as sintering and heating treating of ceramic ,magnet ,glass,metallurgy ,refractory,ect.

Installation of elements:

1)vertically hanging

Under normal temperature,MoSi2 ,element is very brittleness,while under high temperature it is plasticity.So,the better way for installation if the UShape element is to hang it vertically,to the furnace top through the support clamping chuck H.The aim of such way is to avoid putting the mechanical stress directly to the element heat-generating end ,or the element will easily be broken.

2) support clamp

Support clamp are applied to 9/18 and 6/12 two kinds of elements respectively. the support clamp supports the whole weight of the element and the position of the element is also determined by it .therefore ,it must be installed carefully to assure that the element it veryically  hungin order to prevent the element from being over heated locally,the taper part of the element lower end must put into the furnace chamber.

Notice to Furnace Operation:

To avoid high current surges which may cause damage to MoSi2 Heater Molybdenum Disilicide Heating Elements , the recommend starting procedure as following:

Any need ,please offer some message below :

Size: MoSi2 Heater Molybdenum Disilicide Heating Elements

Diameter of Hot Zone (D1):mm

Diameter of Cold End (D2):mm

Length of Hot Zone (Le):mm

Length of Cold End (Lu):mm

Shank spacing (A):mm

For example:

D1=6mm, D2=12mm, Le=200mm, Lu=180mm, A=30mm

Please specify as: dia6/12x200x180x30mm (D1/D2 x Le x Lu x A mm)

Products show :

Clamp :
