Zhengzhou STA 2800F Molybdenum disilicide heating elements
- 1000000 Piece / Pieces per Month
- QINGDAO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
STA CE quality 1800C Mosi2 heating elements for glass melting furnace
-
good qualitity Ceramic fibre crucible furnace chamber
-
hot sale Ceramic fibre crucible furnace chamber
-
Hot sale U type high temperature Molybdenum Disilicide heating elements for lab muffle furnace
-
STA High Temperature MoSi2 heating elements molybdenum disilicide heater for Laboratory Tube Furnace
-
STA cheap price high super Molybdenum Disilicide Mosi2 Heating Elements
Product Details
| Condition | New | Type | Air Heater | |
| Power Source | Electric | Place of Origin | Henan, China | |
| Brand Name | STA | Model Number | MD-025 | |
| Dimension(L*W*H) | customized | Weight | 2kg | |
| Certification | CE/ISO9001 | Warranty | 6 months, 6 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Zhengzhou STA 2800F Molybdenum disilicide heating elements
MoSi2 heating elements isa resistance generate-heating component made from MoSi2 or the basic material. It is used in high temperature under the oxidizing atmosphere, it looks like glass in its surface and form a light SiO2 glass film which can protect the element not to be oxidized. So this kind of element has unique effect for resisting oxidization in the high temperature. It is used to the highest temperature up to 1850C during oxidizing atmosphere. According to your request, our company can produce the products of Pole, "U", "W" and "U"-right angle ,"W"--right ,Abnormal shapes, etc.
Some grade and Standard dimension :
1) Main type :U, W ,UL, WL, Rod . Material grade :M1700,M1800,M1900.
2) Standard dimension (mm):3/6,4/9,6/12,7/14,9/18,12/24.
Physical property of MoSi2 heating element:
| volume density | 5.5~5.6g/cm³ | bend strength | 5.5~25kg/cm² |
| vickers-hardness | (hv)570kg/mm² | porosity rate | 7.4% |
| water absortion | 1.2% | hot extensiblity | 4% |
The influence of operation temperature on the heater surface in a different atmosphere
Atmosphere | The Maximum Using Temperature of Element | ||
1700 Grade | 1800 Grade | 1900 Grade | |
NO2,CO2,O2,Air | 1700°C | 1800°C | 1850°C |
He,Ar,Ne | 1650°C | 1750°C | 1800°C |
SO2 | 1600°C | 1700°C | 1800°C |
CO,H2 | 1500°C | 1600°C | 1700°C |
WetH2 | 1400°C | 1500°C | 1650°C |
DryH2 | 1350°C | 1450°C | 1600°C |
Main application of heating element :
widely used in such applications as sintering and heating treating of ceramic ,magnet ,glass,metallurgy ,refractory,ect.

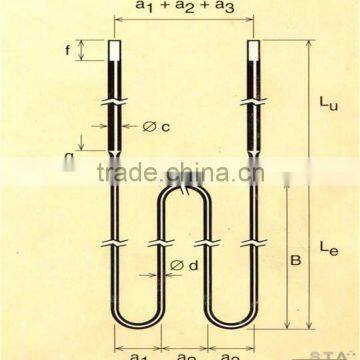

Please note :Size: MoSi2 heating element:
Diameter of Hot Zone (D1):mm
Diameter of Cold End (D2):mm
Length of Hot Zone (Le):mm
Length of Cold End (Lu):mm Shank spacing (A):mm
For example:
D1=6mm, D2=12mm, Le=190mm, Lu=200mm, A=50mm
Please specify as: dia6/12x190x200x50mm (D1/D2 x Le x Lu x A mm)
Pictures of MoSi2 heating element:
clamps and straps:
Shippping term: DHL/FEDEX/TNT EXPRESS
Packaging:
STA UNIVERSE GROUP CO.,LTD is a profession manufactory in China for years. We specialize in muffle furnace, ceramic fiber products, refractory and related goods. High quality products with competitive price are popular to customer. With good after-sales service, our company have a highest reputation at overseas.
Founded is 2001, The universe group is dedicating to innovation and creating a world brand from now on. Original a small collective plant on the verge of workshop, it has now grown into an international group which has more than 72,00 employees around the globe and realizes a turnover of 2.7 billion yuan in 2010.
Our Service
1. Your inquiry related to our products or prices will be replied within 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. All our products have 1-year warranty.
4. Offering the support to solve the problem in the application or selling period.
5. Competitive prices based on same quality.
6. Guarantee samples quality same as mass production quality.
7. Check quality of items one by one
8. Provide packing photos and tracking number
9. tracking parcel for you.
1.Do you have MOQ of goods?
We accept the trial order, so you can test quality firstly.
2.Can you offer best price for us to beat competitors?
Of course, we can update price to support your business.
3.How long will it take to complete my order?
For the stock items, we can arrange the shippment within 2 days after paymment is received. For the customized items,lead time is about 25 days.
4.What's your after-sales service?
Furances is 2 years warranty, other products is 3 months.
5. Can you send goods to our shipping agent in China?
YES, We can. And delivery time is within 3 days.
6. I will go to China for Shanghai international exhibition of refractories and industrial ceramics, And can we visit your factory?
We are so happy to get your visit.
