Product Details
| Place of Origin | Henan, China | Brand Name | STA | |
| Model Number | STA-TS001 | Usage | Industrial | |
| Theory | Temperature Sensor |
Product Description

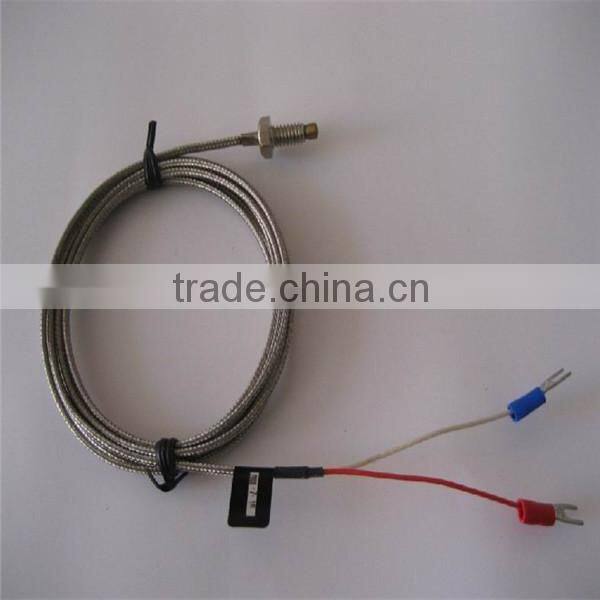

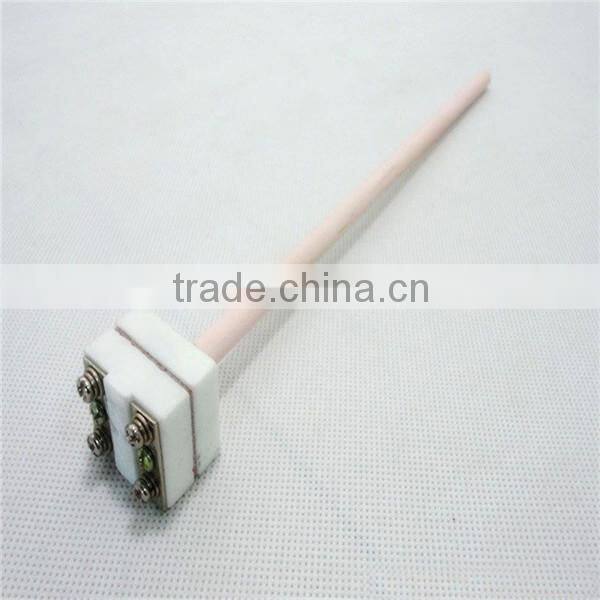

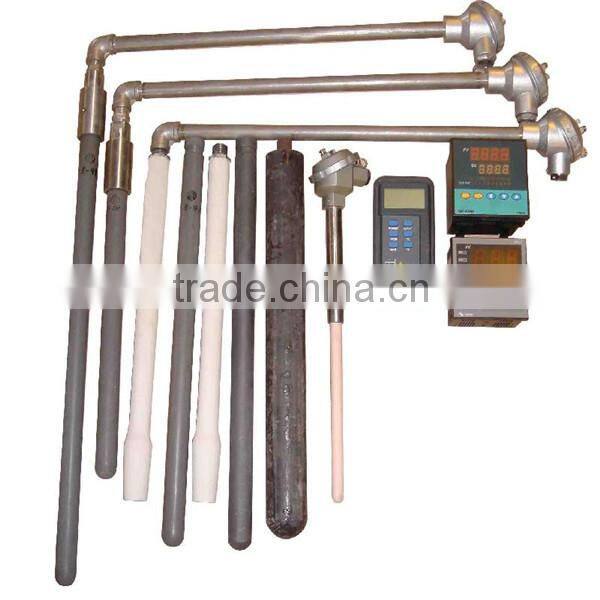

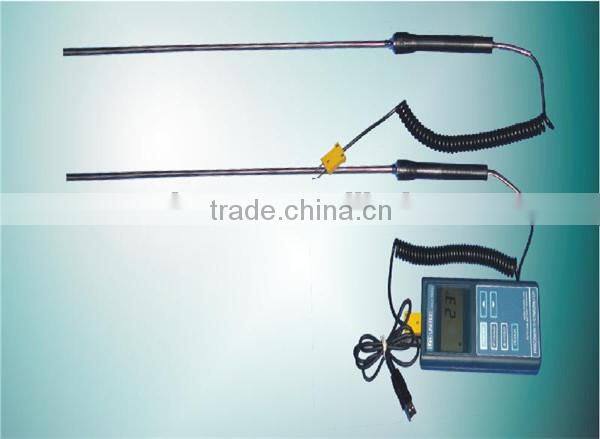

STA High temperature 1600C K type thermocouple
1.Product description
Thermocouple is manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed. The thermocouple junction may be of many different styles, from tube type to a washer configuration. The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor. The metal that the sensor is constructed of determines the type of thermocouple manufactured.
2.The specifications of the thermocouple
Thermocouple, S type thermocouple, K type thermocouple, Industrial thermocouple  | |
Thermal element materials  | S: PtRh10-Pt N: NiCrSi-NiSi K: NiCr-NiSi E: NiCr-CuNi J: Fe-CuNi T: Cu-CuNi  |
Pairs quantity of sensor wire  | Simplex Duplex  |
Ways of Mounting & Fixing  | 1: without fixing device 2: fixed compression thread 3: movable compression thread 4: fixed compression flange 5: movable compression flange 6: shaking proof & leakage resisting compression thread  |
Types of connections box  | 0: connection seat type 2: anti-spray (Protection class: IP65) 3: water-proof (Protection class: IP55) 6: round plug type 7: flag plug type 8: handle type 9: compensation wire type  |
Types of sensor end  | 1. insulation type 2. shell-connection type  |
Additional mounting device  | M: heat-conducting cube part type G: hoop type  |
3. Applications:
- Plastic injection molding machinery
 - Food processing equipment
 - Engine and turbine exhaust gas
 - Semiconductor processing
 - Heat treating and metals processing
 - Medical equipment
 - Aerospace industries
 - Packaging equipment
 - Test stands
