hot sales S/R type thermocouple,PtRh30%- PtRh6% B type thermocouple
- Any port
- Credit Card
You May Like
-
ZHENG ZHOU STA S/R type thermocouple,PtRh30%- PtRh6% B type thermocouple
-
High Precision K / S / R / B type Thermocouple with different dimension
Quality Choice
-
Ceramic Tube Platinum Rhodium B Type Thermocouple for Industrial Furnace
-
Corundum Tube Platinum Rhodium B Type Thermocouple for Industrial Furnace
-
B Type Thermocouple for High Temperature 1800C
-
1800C B Type Thermocouple for high temperature furnace
Product Details
| Place of Origin | Henan, China | Brand Name | STA | |
| Model Number | BT---008 | Usage | Industrial | |
| Theory | Temperature Sensor | Temperature Range | 0~1800 celsius degree |
Product Description
STA providing thermocouples are manufactured in different combinations of metals. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
Platinum rhodium thermocouple is usually used together with indicating instrument, recording instrument, computer, and so on.
It directly measures liquid, steam, gas medium and surface of solids that all kinds of productive process temperaturefrom 0~1800°C.
Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.
Characteristics of type b thermocouple:
** Simply assembled and easily changed
** Spring-type temperature sensing element, good seismic performance
** High precision to measure temperature
** Large measuring range (-200°C to 1300°C, special case, -270°C to 2800°C)
**Sensitive thermal response
**High mechanical strength, good pressure resistance
**High temperature resistance up to 2800°C
** Long life time
Performance Capabilities:
Conductor | Wire Calibration | Accuracy | |||
Class | Class | ||||
Accuracy | Temperature range() | Accuracy | Temperature range() | ||
Ni Cr-Ni Si | K | 1.5 | -40-1000 | 2.5 | -40-1000 |
Ni Cr Si-Ni Si | E | -40-1100 | -40-1200 | ||
NiCr-Konstantan | N | -40-800 | -40-800 | ||
Fe-Konstantan | J | -40-750 | -40-750 | ||
Cu-Konstantan | T | 1 or | -40-350 | 1.5 or | -40-350 |
Pt Rh 10-Pt | S | 1or | 0-1600 | 1.5 | 0-1600 |
PtRh 13-Pt | R | 0-1600 | |||
Pt Rh30-PtRh 6 | B | 1+t-1100× 0.001 | 0-1800 | 0-1800 | |
The structure requirements of the thermal couple of type b thermocouple
In order to ensure the thermocouple stable and reliable work, its structure should follow the items below:
1) The welding of the two electrodes to compose the thermocouple should be firm;
2) The two hot electrodes should be well insulated to prevent short circuits;
3) The connection between the thermocouple compensation wire and the free end should be convenient and reliable;
4) Protection tube should protect the heat electrodes from the harmful media adequately.

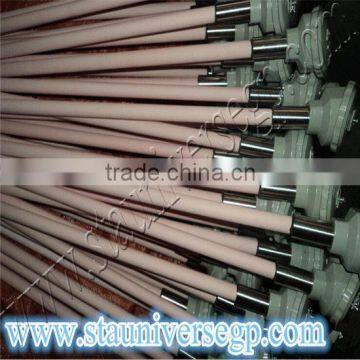

About the pictures show:
Polyethylene foam and wooden case and wooden pallet or pack as customer's requirement .
You can contact our trade manager at any time. Your problems can be responsed in 12 hours can we will give you solutions in 24 hours. Also if there’s any problem about our products’ quality, we accept resending them again. Thank you.
*STA Universe Group is bigger manufacturer, of which STA is a brand, is part of the STA Universe Group, a large, high-technology engineering group. It include many factories in China, such as Henan, Zhejiang, Shandong, many provinces.
*STA Heating Elements Factory of STA Group, of which STA is a brand, is a world-leading developer and manufacturer of products based on advanced heating elements.
*Our products and services contribute to our customers' productivity, reliability and cost efficiency while reducing their environmental impact in a wide variety of industry segments.
* In partnership with customers, we jointly develop products and materials that meet the challenges of the future.
*The Heating Elements Factory of STA Universe Group is a manufacturer of silicon carbide heating elements, trade name STA SiC and molybdenum disilicide heating elements, trade name STA MoSi2.
*The STA heating element has a maximum use temperature of 1700 C. The MoSi2 element can operate up to an element temperature of 1800 C, and new 1900 C.
Why STA:
1. We are a manufacturer, which can control the cost easiler than trade company also can give you anwer more quickly.
2. As a manufacturer, we know much in technique and can give you more support in technique problem.
3.Our products are complete in specifications with various of sizes.
4.We enjoy a good reputation in the customers in domestic and overseas markets.
Our factory can according to your need to customize different type required.
If you have any questions or new need of them, pls contact me at any time. The more information will be sent to you, thanks in advance.
